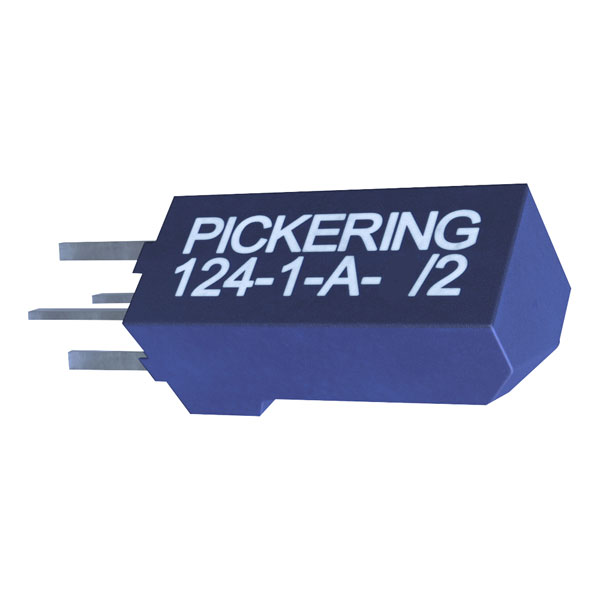

Pickering 124-1-A-3/2 Ultra High Density 0.5 Amp 5 Watts (SPST) 3V Reed Relay

Order Code:

66-1038

  Copy to clipboard
Brand: Pickering Reed Relays  Copy to clipboard MPN: 124-1-A-3/2 Copy to clipboard
 Report an error
Qty Unit Price (Ex VAT)
1+ £2.43

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Contact us for lead times
45 in Stock, despatched same dayContact us for additional stock

The Pickering Series 124 reed relay range are ultra-high density 4mm² reed relays that take up the minimum board area, allowing high packing density. The relays have sputtered ruthenium contacts that give a switch rating of 0.5A at 10W. Fast operate and release times make these relays ideal for high speed test systems, such as A.T.E. switching matrices or multiplexers.


  • Coil voltage 3V
  • 5W, 0.5A Switching
  • 1 Form A (SPST) Normally Open (NO) energize to make
  • Single pole 4mm² reed relays
  • Stacking on 2 x 2mm square pitch
  • Internal mu-metal magnetic screen
  • Suitable for low level or 'cold' switching
  • Highest quality instrumentation grade switches
  • High insulation resistance
  • 100% Tested for dynamic contact resistance


Contact Configuration 1A
Coil Voltage (DC) 3V
Coil Resistance 75Ω
Switching Voltage Max (DC) 170V
Switching Current Max 0.5A
Switching Power 5W
Mounting Type PCB
Operating Temperature -20 to +85°C
Height 9.5mm
Length 3.9mm
Width 3.9mm
