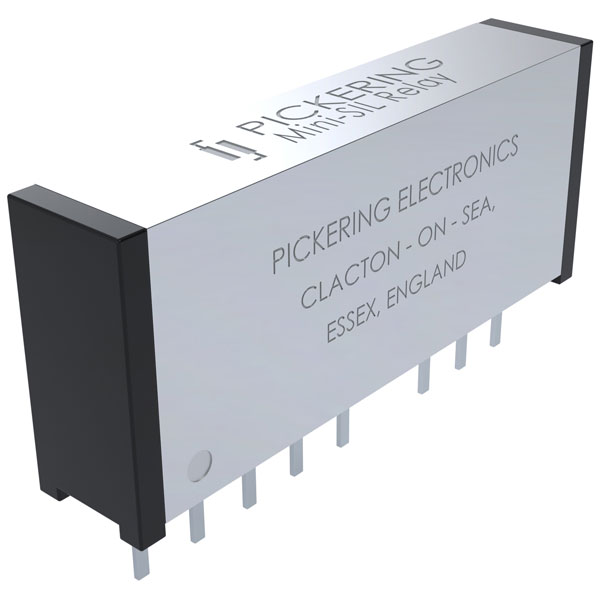

Pickering 107-2-C-5/3D Double Change-Over 2 Form C (DPDT) 5V SIL Reed Relay

A 5V 0.25A reed relay with double changeover contacts. The relay is supplied in a mini-SIL package that can stack on a 0.2in pitch, making it ideal for high density mounting applications. The relay uses the highest quality instrument grade switches, and is encapsulated in a patented mu-metal can that ensures virtually total magnetic screening - vital when high density mounting.

The relay has an ultra high insulation resistance, and as a guarantee of excellent performance, is 100% tested for dynamic contact resistance. All the performance and features make this device ideal for use in high quality instrumentation.

• Double changeover contacts
• SoftCenter construction
• Fitted with internal diode
• Easily stackable for high density mounting
• Fast operating reed contact
• Insulation resistance greater than 10¹²Ω
