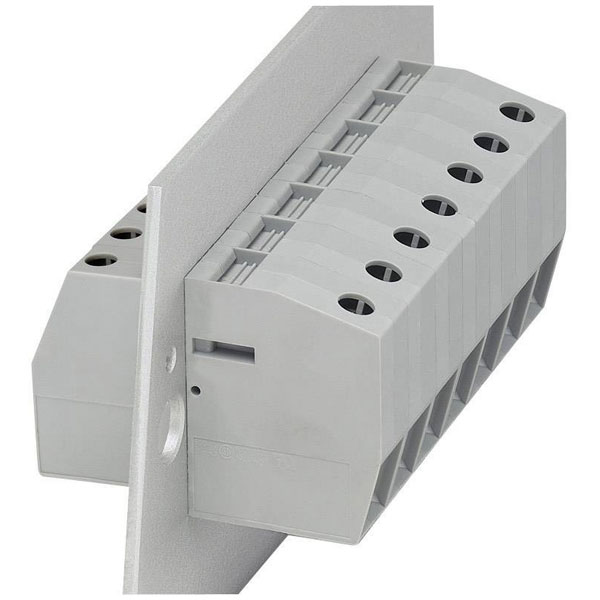

Phoenix Contact 707743 Feedthrough Terminal 15.1mm Screw Grey

The Phoenix Contact feedthrough terminal model 707743 is a grey, screw-type terminal block with dimensions of 38.5x15.1x48.5 mm. It is designed for continuity applications in electrical panels and switchboards. This component is typically used in industrial and commercial electrical systems to ensure reliable connections.

No. of Rows	1
Current Rating	125A
Colour	Grey
Wire Gauge (AWG)	2
Wire Gauge (mm²)	35mm²
AWG (min.)	10
Clamp width	15.1mm
Compatible with (details)	1 - 6 mm thick housing walls
Connection	Screws
Cross section (flexible) (min.)	10mm²
Cross section (inflexible) (min.)	6mm²
Dim	(L x W x H) 38.50 x 15.1 x 48.50 mm
Flammability Rating	V0
Height	48.50mm
Industrial packaging	No
Insulation	PA
Insulation Material	PA
Length	38.50mm
Misc Attribute	HDFK 25
Nominal Voltage	500V
Number of pins	2
Stripping length (max.)	19mm
Type	Feedthrough terminal
Width	15.1mm
