Phoenix Contact 3260148 Clip Terminal 18.5mm quick-connect blue 1pc

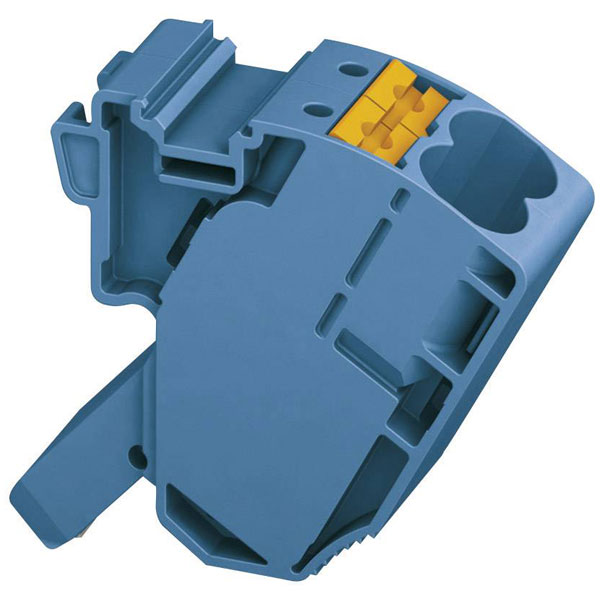

The Phoenix Contact 3260148 Clip Terminal is a blue, quick-connect serial terminal with an 18.5 mm width. It is designed for use in switchboards, offering reliable continuity for electrical connections. This component is commonly used for efficient wiring installations in electrical and electronic systems.

No. of Rows	1
Current Rating	57A
Colour	Blue
Wire Gauge (AWG)	8 AWG
Wire Gauge (mm²)	16mm²
AWG (min.)	20
Clamp width	18.5mm
Connectable	N/A
Connectable conductor cross section	10 - 10mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 10mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection	Quick-connect
Contamination level	3
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Dim	(L x W x H) 35 x 18.5 x 34.7 mm
Flammability Rating	V0
Height	34.7mm
Industrial packaging	No
Insulation	PA
Insulation class	I
Insulation Material	PA
Length	35mm
Misc Attribute	AGK 10-PTPOWER BU
Model	N/A
Nominal Voltage	1500V
Number of Pins	2
Number of Poles	N/A
Rated current In	N/AA
Rated voltage	N/AV
Stripping length (max.)	18mm
Total number of poles (without ground contact)	N/A
Type of electric connection	N/A
Width	18.5mm
