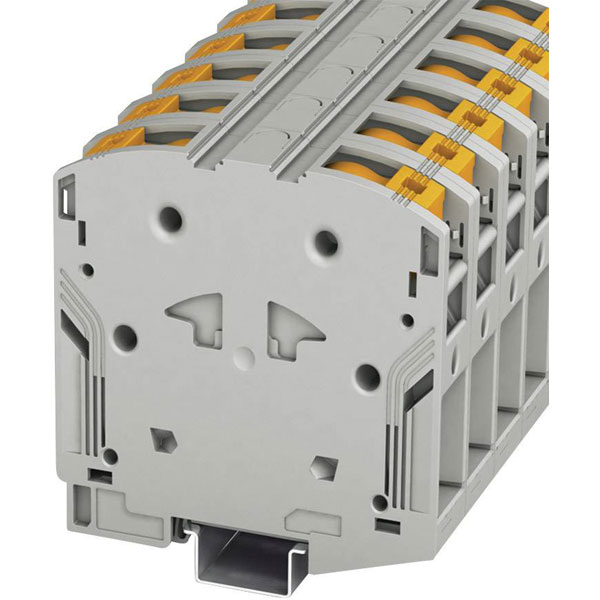

Phoenix Contact 3260100 high-current Terminal quick-connect grey

The Phoenix Contact 3260100 Continuity 25 mm Quick-connect terminal is designed for efficient and reliable connections in electrical switchboards. This grey terminal is ideal for establishing continuity in serial terminal applications. It is typically used in various industrial and commercial settings for secure and quick electrical connections.

Type	Continuity
No. of Ways	2
No. of Levels	1
Termination	Quick-Connect
Width	25mm
Wire Gauge (mm²)	95mm²
AWG (min.)	4
Clamp width	25mm
Closing plate required	false
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	25 - 25mm²
Connectable conductor cross section fine-strand without cable end sleeve	25 - 95mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	25 - 95mm²
Connection	Quick-connect
Contamination level	3
Cross section (flexible) (min.)	25mm²
Cross section (inflexible) (min.)	25mm²
Current Rating	232A
Depth	108.7mm
Dim	(L x W x H) 105.5 x 25 x 108.7 mm
Explosion-tested version Ex e	N/A
Flammability Rating	V0
Height	108.7mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Insulation class	I
Internally connected stages	true
Length	105.5mm
Material insulation body	Other
Maximum Wire Size AWG	3
Misc Attribute	PTPOWER 95
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	1500V
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
Rated current In	232A
Rated voltage	1000V
Stripping length (max.)	40mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	3
