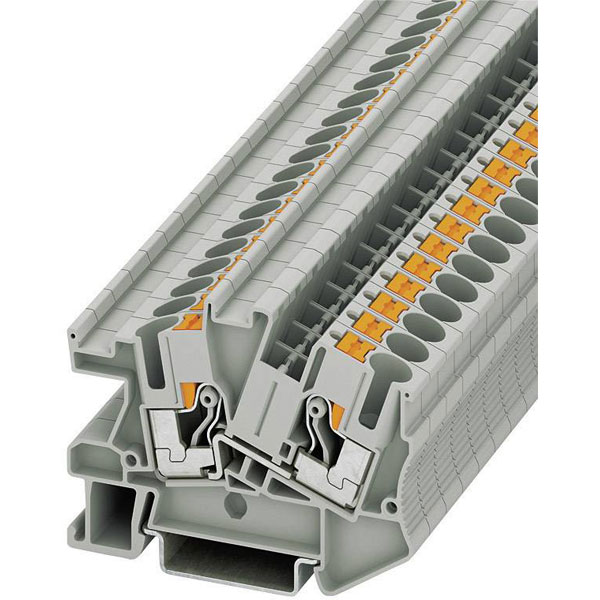

Phoenix Contact 3213972 Terminal Quick-connect 8.2 mm Grey 1pc

Phoenix Contact's 3213972 terminal features an 8.2 mm quick-connect design for efficient electrical connections. This grey terminal is typically used in switchboards to ensure continuity in electrical circuits. It is ideal for applications requiring reliable and straightforward terminal connections.

Type	Terminal
Pitch	8.2mm
No. of Ways	2
Termination	Quick-Connect
Width	8.2mm
Wire Gauge (mm²)	10mm²
AWG (min.)	20
Basic colour	Grey
Clamp width	8.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 6mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	0.5 - 10mm²
Connectable conductor cross section solid-core	0.5 - 10mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Current Rating	41A
Depth	48.5mm
Dim	(L x W x H) 66 x 8.2 x 48.5 mm
Flammability Rating	V0
Height	48.5mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Length	66mm
Material insulation body	Other
Maximum Wire Size AWG	10
Misc Attribute	PTI 6
Mounting method	Other
N function possible	N/A
Nominal Voltage	800V
Number of pins	2
Number of potentials	N/A
Number of Rows	1
Operating Temperature	- - -°C
PE-function	false
Rated current In	41A
Rated voltage	800V
Stripping length (max.)	12mm
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	10
With N-disconnect slide	N/A
