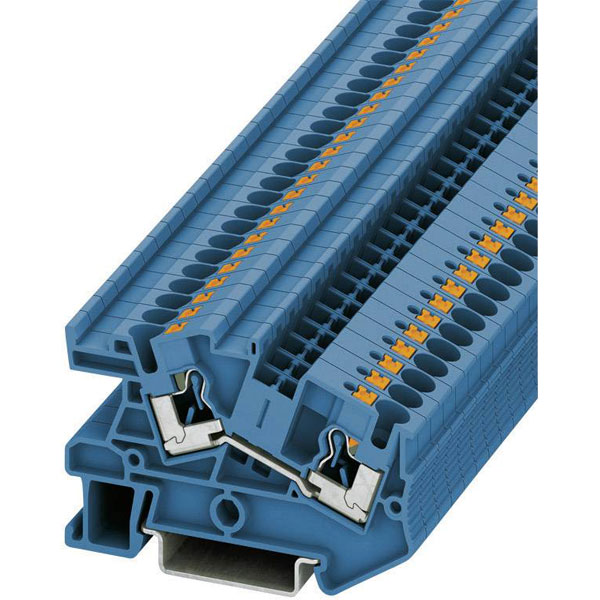

Phoenix Contact 3213971 Terminal 6.2 mm Quick-connect Blue 1pc

The Phoenix Contact 3213971 is a blue terminal designed for quick-connect applications with a 6.2 mm width. Manufactured by Phoenix Contact, this terminal ensures efficient continuity in switchboard and serial terminal setups. It is typically used in electrical and electronic systems to facilitate reliable connections.

Type	Terminal
Pitch	6.2mm
No. of Ways	2
Termination	Quick-Connect
Width	6.2mm
Wire Gauge (mm²)	6mm²
AWG (min.)	24
Basic colour	Blue
Clamp width	6.2mm
Closing plate required	true
Colour	Blue
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 6mm²
Connectable conductor cross section multi-wired	0.2 - 6mm²
Connectable conductor cross section solid-core	0.2 - 6mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	32A
Depth	42.5mm
Dim	(L x W x H) 66 x 6.2 x 42.5 mm
Flammability Rating	V0
Height	42.5mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Length	66mm
Material insulation body	Other
Maximum Wire Size AWG	12
Min. stripping length	10mm
Misc Attribute	PTI 4 BU
Mounting method	Other
N function possible	N/A
Nominal Voltage	800V
Number of pins	2
Number of potentials	N/A
Number of Rows	1
Operating Temperature	- - -°C
PE-function	false
Rated current In	32A
Rated voltage	800V
Stripping length (max.)	12mm
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	12
With N-disconnect slide	N/A
