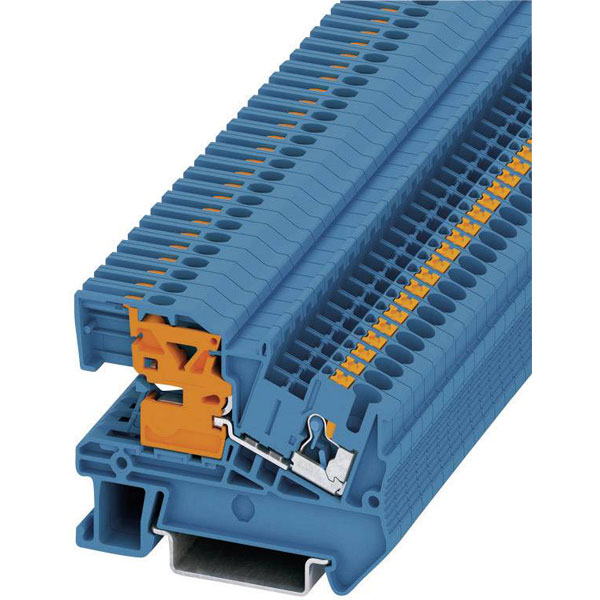

Phoenix Contact 3213963 N Terminal 5.2 mm Quick-connect Blue

The Phoenix Contact 3213963 N terminal is a 5.2 mm Quick-connect component, designed for efficient electrical connections. Its blue colour and reliable continuity make it suitable for use in switchboard terminals. Typical applications include serial terminal connections in electrical panels and systems.

Type	N terminal
Pitch	5.2mm
No. of Ways	2
No. of Levels	2
Termination	Quick-Connect
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	26
Clamp width	5.2mm
Colour	Blue
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 4mm²
Connectable conductor cross section multi-wired	0.2 - 1.5mm²
Connectable conductor cross section solid-core	0.14 - 4mm²
Connecting plate required	true
Connection	Quick-connect
Cross section (flexible) (min.)	0.14mm²
Cross section (inflexible) (min.)	0.14mm²
Current Rating	24A
Depth	44.8mm
Dim	(L x W x H) 59 x 5.2 x 44.8 mm
Flammability Rating	V0
Height	44.8mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Length	59mm
Material insulation body	Other
Maximum Wire Size AWG	12
Min. stripping length	8mm
Misc Attribute	PTN 2,5
Mounting method	Other
Nominal Voltage	250V
Number of clamp positions	2
Number of pins	2
Number of Rows	1
Operating Temperature	- - -°C
Rated current In	N/AA
Rated voltage	250V
Stripping length (max.)	10mm
Suitable for N-busbar	N/A
Type of electric connection	Other
Weight	0.01
Wire Gauge (AWG)	12
