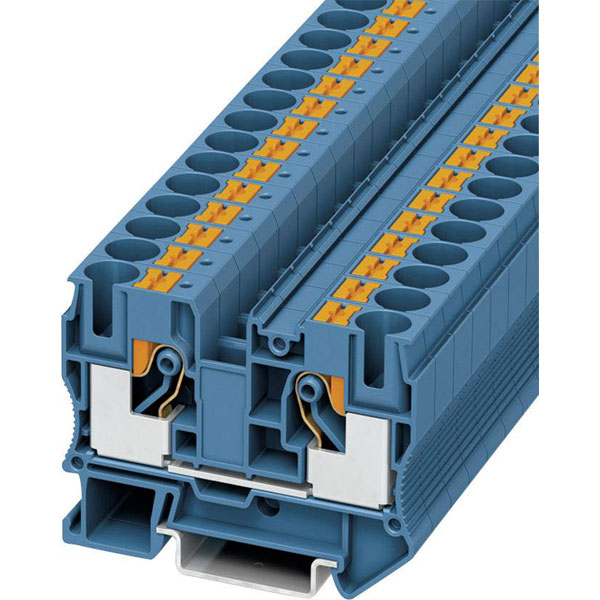

Phoenix Contact manufactures this blue 10.2 mm quick-connect continuity terminal, model number 3212123. It is designed for use in switchboards, providing reliable serial connectivity and ease of installation. Typical applications include automation systems and electrical panel assemblies.
| Type |
Continuity |
| Pitch |
10.2 mm |
| Termination |
Push-in Cage clamp |
| Width |
10.2mm |
| Wire Gauge (mm²) |
16mm² |
| AWG (min.) |
20 |
| Clamp width |
10.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5 - 0.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 16mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.5 - 16mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.5mm² |
| Cross section (inflexible) (min.) |
0.5mm² |
| Current Rating |
30A |
| Depth |
49.5mm |
| Dim |
(L x W x H) 67.7 x 10.2 x 49.5 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
49.5mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
67.7mm |
| Material insulation body |
Other |
| Misc Attribute |
PT 10 BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
1000V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of Pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
57A |
| Rated voltage |
1000V |
| Stripping length (max.) |
18mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
8 |
