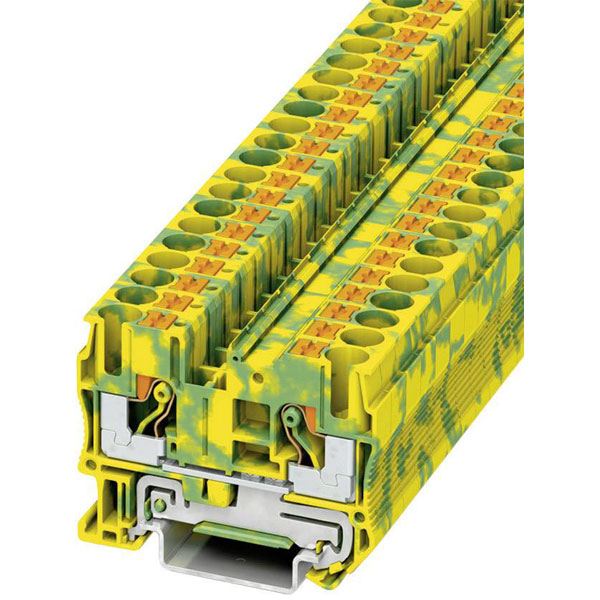

Phoenix Contact 3211822 triple port PG Terminal 8.2 mm quick-connect

The Phoenix Contact 3211822 Triple Port PG Terminal features an 8.2 mm quick-connect design, available in green and yellow. This switchboard terminal is ideal for applications requiring reliable continuity. It is well-suited for electrical installations in control panels and serial terminal connections.

Type	Triple port PG terminal
Pitch	8.2mm
No. of Ways	2
Termination	Quick-Connect
Width	8.2mm
Wire Gauge (mm²)	10mm²
AWG (min.)	20
Clamp width	8.2mm
Closing plate required	true
Colour	Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 6mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.5 - 10mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Depth	42.2mm
Dim	(L x W x H) 57.7 x 8.2 x 42.2 mm
Flammability Rating	V0
Height	42.2mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Length	57.7mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	8
Min. stripping length	10mm
Misc Attribute	PT 6-PE
Mounting method	DIN rail (top hat rail) 35 mm
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
PEN function possible	false
Stripping length (max.)	12mm
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	8
