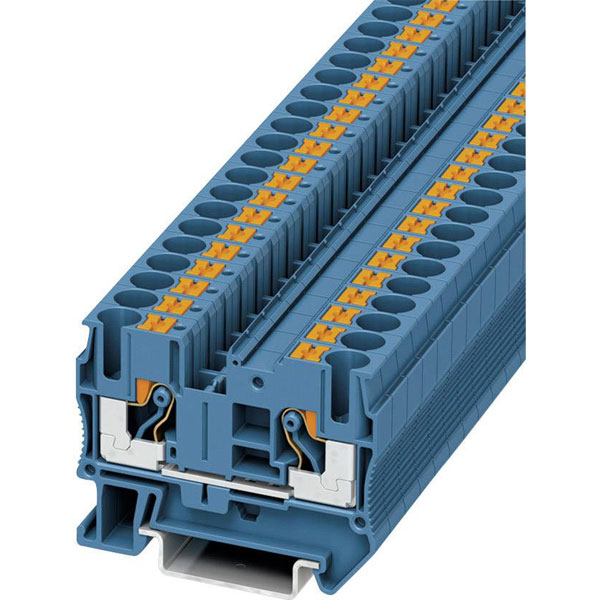

The Phoenix Contact 3211819 is a blue serial terminal designed for continuity applications, featuring an 8.2 mm quick-connect. It is ideal for use in switchboard terminals, providing robust and reliable electrical connections. This component is typically used in control panels and industrial automation systems.
| Type |
Continuity |
| Pitch |
8.2mm |
| No. of Ways |
2 |
| No. of Levels |
1 |
| Termination |
Quick-Connect |
| Width |
8.2mm |
| Wire Gauge (mm²) |
10mm² |
| AWG (min.) |
20 |
| Clamp width |
8.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5 - 0.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 10mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.5 - 10mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.5mm² |
| Cross section (inflexible) (min.) |
0.5mm² |
| Current Rating |
30A |
| Depth |
42.2mm |
| Dim |
(L x W x H) 57.7 x 8.2 x 42.2 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
42.2mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
57.7mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
10 |
| Min. stripping length |
10mm |
| Misc Attribute |
PT 6 BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
1000V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
41A |
| Rated voltage |
1000V |
| Stripping length (max.) |
12mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Weight |
0.01 |
| Wire Gauge (AWG) |
10 |
