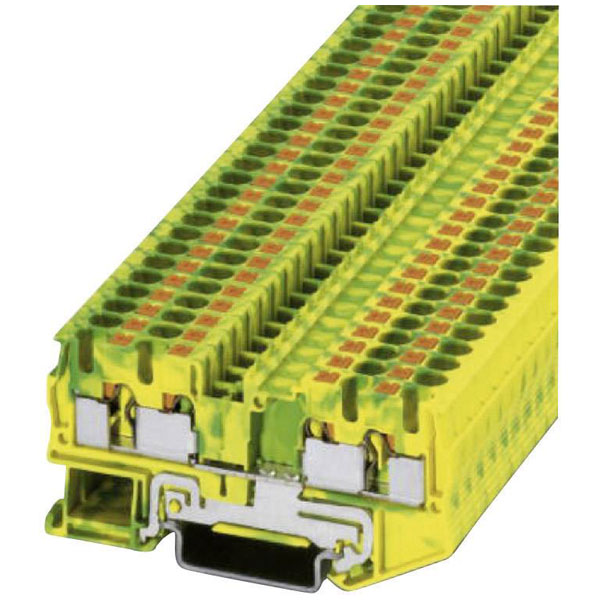

Phoenix Contact 3211809 triple port PG Terminal 6.2 mm green/yellow

Phoenix Contact's 3211809 Triple Port PG Terminal offers a 6.2 mm quick-connect design with green and yellow coding for easy identification. This serial terminal is known for its reliable continuity and efficient connection in switchboard applications. It is ideal for use in electrical distribution systems, providing secure and organised connections.

Type	Triple port PG terminal
Pitch	6.2mm
No. of Ways	2
Termination	Quick-Connect
Width	6.2mm
Wire Gauge (mm²)	6mm²
AWG (min.)	24
Clamp width	6.2mm
Closing plate required	true
Colour	Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 6mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 6mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Depth	35.3mm
Dim	(L x W x H) 77 x 6.2 x 35.3 mm
Flammability Rating	V0
Height	35.3mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	Polyamide
Length	77mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	10
Min. stripping length	10mm
Misc Attribute	PT 4-QUATTRO-PE
Mounting method	DIN rail (top hat rail) 35 mm
Number of clamp positions per level	4
Number of levels	1.0
Number of pins	4
Number of Rows	1
Operating Temperature	-60 - 110°C
PEN function possible	false
Stripping length (max.)	12mm
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	10
