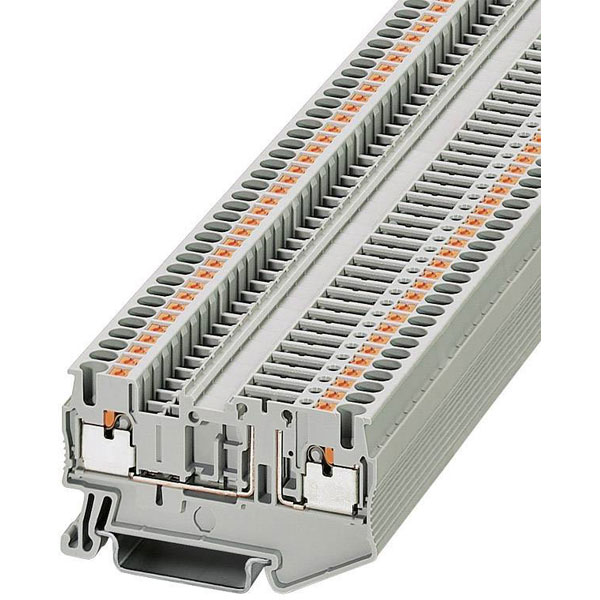

Phoenix Contact's 3210185 is a grey, modular terminal block designed for quick connections with a 5.2 mm pitch. This component is ideal for use in switchboards and offers reliable continuity for serial terminals. It features dimensions of 62x5.2x36.5 mm and serves well in industrial and electrical applications.
| Type |
N terminal |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| No. of Levels |
1 |
| Termination |
Quick-Connect |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 2.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
20A |
| Depth |
35.3mm |
| Dim |
(L x W x H) 62 x 5.2 x 35.3 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
35.3mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
N/A |
| Length |
62mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
14 |
| Min. stripping length |
8mm |
| Misc Attribute |
PT 2,5-TG |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
400V |
| Number of clamp positions per level |
2 |
| Number of levels |
N/A |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
- - -°C |
| Rated current In |
20A |
| Rated voltage |
400V |
| Stripping length (max.) |
10mm |
| Suitable for conductor material |
N/A |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
14 |
