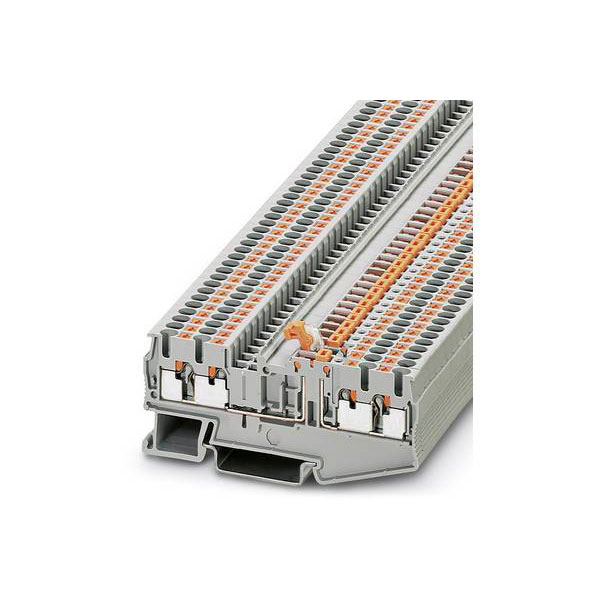

The Phoenix Contact Knife disconnect terminal block PT 2,5-QUATTRO-MT 3210172 is designed for switchboard applications requiring reliable serial and continuity connections. It features a compact design and is suitable for use in control cabinets. Typical applications include industrial automation and electrical distribution systems.
| Type |
N terminal |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| Termination |
Push-in Cage clamp |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Quick-connect |
| Contamination level |
3 |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
20A |
| Depth |
36.5mm |
| Dim |
(L x W x H) 84 x 5.2 x 36.5 mm |
| Flammability Rating |
V0 |
| Height |
36.5mm |
| Industrial packaging |
Yes |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation |
PA |
| Internally connected stages |
true |
| Length |
84mm |
| Material insulation body |
Thermoplastic |
| Maximum Wire Size AWG |
14 |
| Min. stripping length |
8mm |
| Misc Attribute |
PT 2,5-QUATTRO-MT |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
400V |
| Number of clamp positions per level |
4 |
| Number of levels |
1.0 |
| Number of pins |
4 |
| Number of Rows |
1 |
| Operating Temperature |
- - -°C |
| Rated current In |
20A |
| Rated voltage |
400V |
| Stripping length (max.) |
10mm |
| Type of cross disconnection |
None |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Type of slitting |
N/A |
| Wire Gauge (AWG) |
14 |
| With integrated test socket |
false |
