Phoenix Contact 3210091 PP Plug Push-in 1 Position Grey 0.14-4 mm²

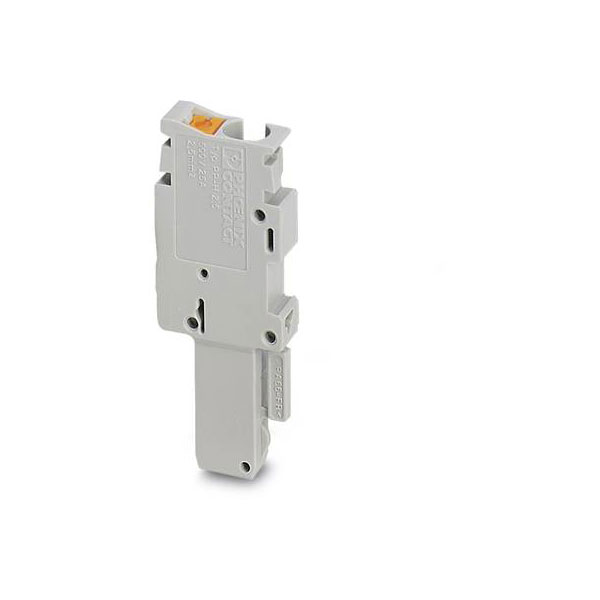

The Plug PP-H 2,5/1-M 3210091 by Phoenix Contact is a connector bit designed for ensuring continuity in switchboard and serial terminal applications. This reliable connection component is integral for maintaining efficient electrical setups. Commonly used in industrial switchboards, it aids in streamlining complex wiring systems.

Colour	Grey
Current Rating	24A
Type	Connector bit
Voltage Rating	500V
Connectable	true
Connectable conductor cross section	- - -mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 2.5mm²
Connectable conductor cross section multi-wired	0.14 - 2.5mm²
Connectable conductor cross section solid-core	0.14 - 4mm²
Connection	Quick-connect
Connection (type)	Quick-Connect
Connections	3
Contamination level	3
Current Rating (A)	24
Industrial packaging	Yes
Insulation	PA
Insulation class	I
Material (details)	Polyamide
Maximum Wire Size AWG	14
Misc Attribute	PP-H 2,5/1-M
Model	Pin insert
Nominal Current	24 A
Number of Poles	1
Product Type	Plug Connector
Rated current In	24A
Rated voltage	500V
Stripping length (max.)	10mm
Stripping length (max.) mm	10mm
Total number of poles (without ground contact)	N/A
Type of electric connection	Other
Voltage Rating (V, V DC)	500 V
Width	5.20mm
Width (mm)	5.2
Wire Gauge	14
