Phoenix Contact 3208155 PT Feed-through block grey push-in 0.14-1.5 mm²

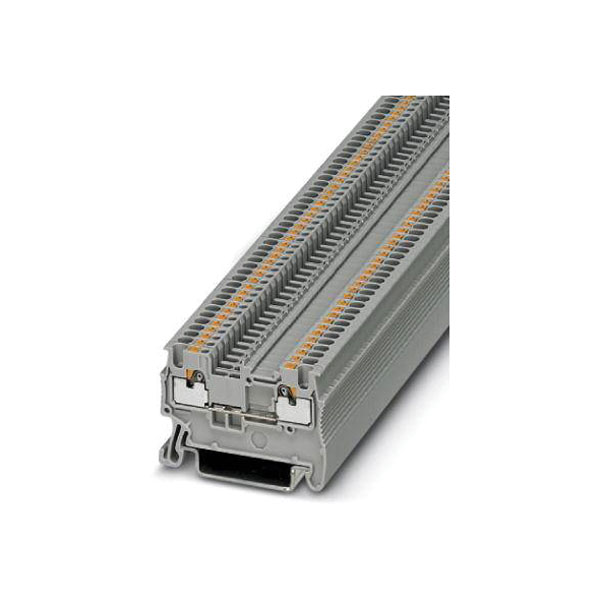

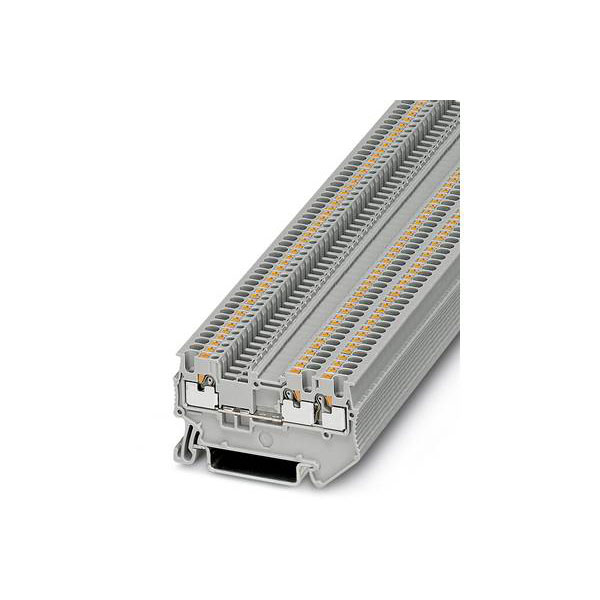

Image Representative of Range

Phoenix Contact 3208155 PT Feed-through block grey push-in 0.14-1.5 mm²

Phoenix Contact
Standard range
Order Code:

06-2553

Brand: Phoenix Contact MPN: 3208155
Qty Unit Price (Ex VAT)
1+ £55.53
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

Phoenix Contact's PT 1,5/S-TWIN 3208155 is a feed-through terminal block designed for serial and switchboard terminals in industrial applications. It ensures continuity and efficient electrical connections, suitable for switchboards. This product is often used in production packaging and is a reliable choice for maintaining consistent electrical performance.
No. of rows 1
AWG (min.) 26
AWG max. 16
Clamp width 3.5mm
Connection Quick-connect
Cross section (flexible) (max.) 1.5mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 1.5mm²
Cross section (inflexible) (min.) 0.14mm²
Dim (L x W x H) 54 x 3.5 x 30.5 mm
Factory colour Grey
Flammability rating V0
Height 30.5mm
Industrial packaging Yes
Length 54mm
Manufacturer part # 3208155
Min. stripping length 8mm
Misc Attribute PT 1,5/S-TWIN
Nominal current 17.5A
Nominal current - rounded value 17.5A
Nominal voltage 500V
Number of pins 3
Stripping length (max.) 10mm
Type Continuity
Width 3.5mm
