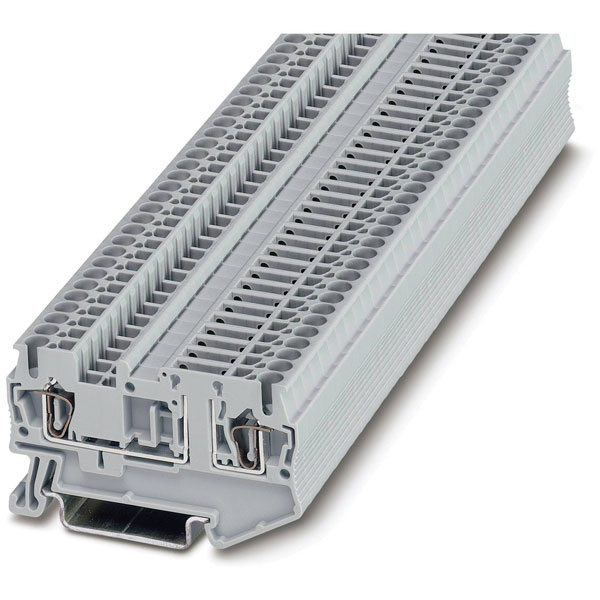

Phoenix Contact's 3205145 N terminal is a quick-connect component designed for seamless serial connections, measuring 76.4 x 5.2 x 46.8 mm. It features a sleek grey finish and is well-suited for use in switchboards and other electrical assemblies. The terminal efficiently facilitates continuity in various wiring applications.
| Type |
N terminal |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| Termination |
Quick-Connect |
| Width |
5.2mm |
| Wire Gauge (mm²) |
1.5mm² |
| AWG (min.) |
22 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
- - -mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.25 - 1.5mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.25 - 1.5mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.25mm² |
| Cross section (inflexible) (min.) |
0.25mm² |
| Current Rating |
16A |
| Depth |
39.3mm |
| Dim |
(L x W x H) 76.4 x 5.2 x 39.3 mm |
| Flammability Rating |
V0 |
| Height |
39.3mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
76.4mm |
| Material insulation body |
Thermoplastic |
| Maximum Wire Size AWG |
16 |
| Misc Attribute 1 |
QTC 1,5-TG |
| Misc Attribute 2 |
QTC 1.5-TG |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
400V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
- - -°C |
| Rated current In |
17.5A |
| Rated voltage |
400V |
| Type of cross disconnection |
None |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Type of slitting |
N/A |
| Wire Gauge (AWG) |
16 |
| With integrated test socket |
false |
