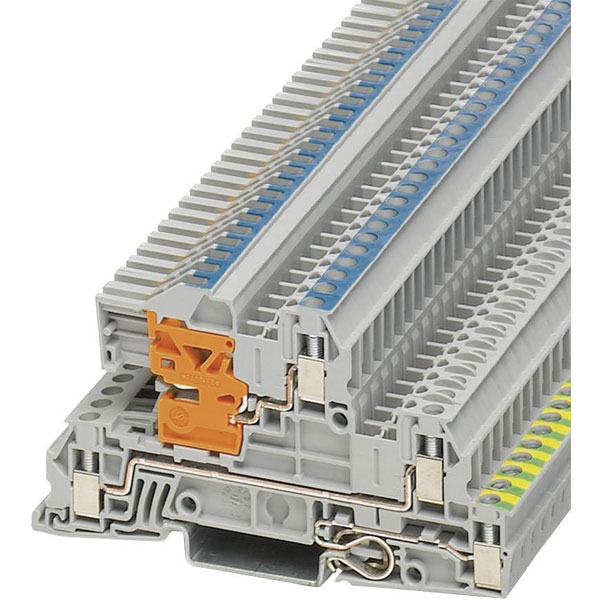

Phoenix Contact 3076028 PG Terminal 5.2 mm Screws grey 1pc

The Phoenix Contact 3076028 PG terminal features 5.2 mm screws and a grey finish. Designed for switchboard and serial terminal applications, it ensures reliable continuity. This component is commonly used in electrical panels for secure and efficient connections.

Type	PG terminal
Pitch	5.2mm
No. of Ways	2
No. of Levels	3
Termination	Screw
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	24
Basic colour	Grey
Clamp width	5.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 4mm²
Connectable conductor cross section multi-wired	0.2 - 4mm²
Connectable conductor cross section solid-core	0.2 - 4mm²
Connection	Screws
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	24A
Depth	51.15mm
Dim	(L x W x H) 93.5 x 5.2 x 51.5 mm
Flammability Rating	V0
Height	51.5mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Insulation class	I
Length	93.5mm
Material insulation body	Other
Maximum Wire Size AWG	12
Misc Attribute	UTI 2,5-PE/L/NT
Mounting method	Other
N function possible	N/A
Nominal Voltage	400V
Number of pins	5
Number of potentials	N/A
Number of Rows	3
Operating Temperature	- - -°C
PE-function	true
Rated current In	24A
Rated voltage	400V
Stripping length (max.)	9mm
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Weight	0.02
Wire Gauge (AWG)	12
With N-disconnect slide	N/A
