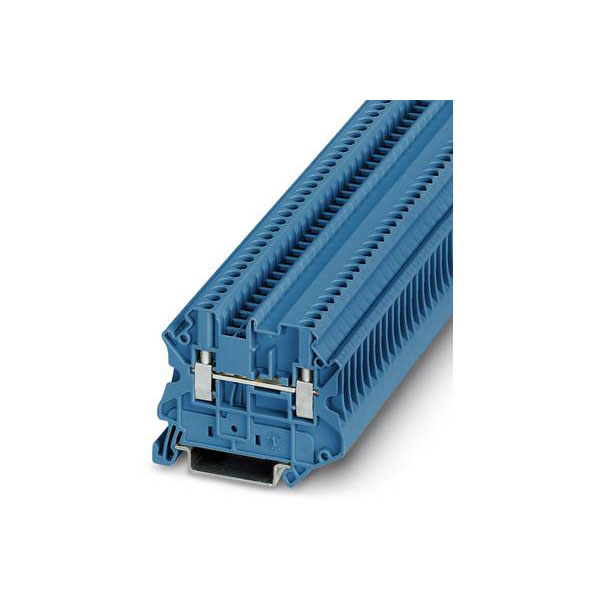

The Phoenix Contact UT 2,5-MTD BU 3064108 is a versatile terminal block designed for easy installation in switchboards, allowing for seamless serial connections. This terminal block supports continuity and can be quickly disconnected for testing purposes. It is typically used in electrical systems requiring reliable connections and simple maintenance.
| Type |
Continuity |
| No. of Ways |
2 |
| Termination |
Screw |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
0.14 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Screws |
| Contamination level |
3 |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
24A |
| Depth |
47.5mm |
| Dim |
(L x W x H) 57.8 x 5.2 x 47.5 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
47.5mm |
| Industrial packaging |
Yes |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation |
PA |
| Internally connected stages |
true |
| Length |
57.8mm |
| Material insulation body |
Other |
| Misc Attribute |
UT 2,5-MTD BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
800V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of Pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
24A |
| Rated voltage |
800V |
| Stripping length (max.) |
9mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Wire Gauge (AWG) |
12 |
