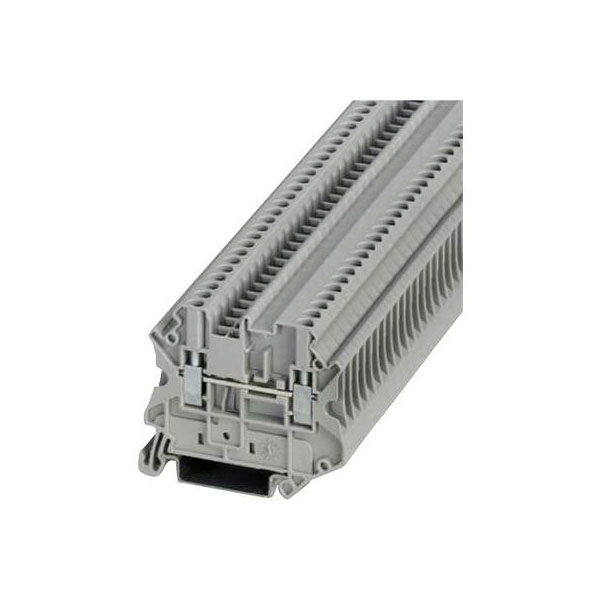

The Phoenix Contact 3064085 is a grey switchboard terminal featuring a 5.2 mm screw connection, designed for continuity applications. This reliable serial terminal is used in electrical installations to ensure secure and efficient conductivity. Ideal for use in switchboards, it supports effective circuit connections in industrial and commercial environments.
| Type |
Continuity |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| Termination |
Screw |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
0.14 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Screws |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
24A |
| Depth |
47.5mm |
| Dim |
(L x W x H) 57.8 x 5.2 x 47.5 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
47.5mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
57.8mm |
| Material insulation body |
Other |
| Misc Attribute |
UT 2,5-MTD |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
800V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of Pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
24A |
| Rated voltage |
800V |
| Stripping length (max.) |
9mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Wire Gauge (AWG) |
12 |
