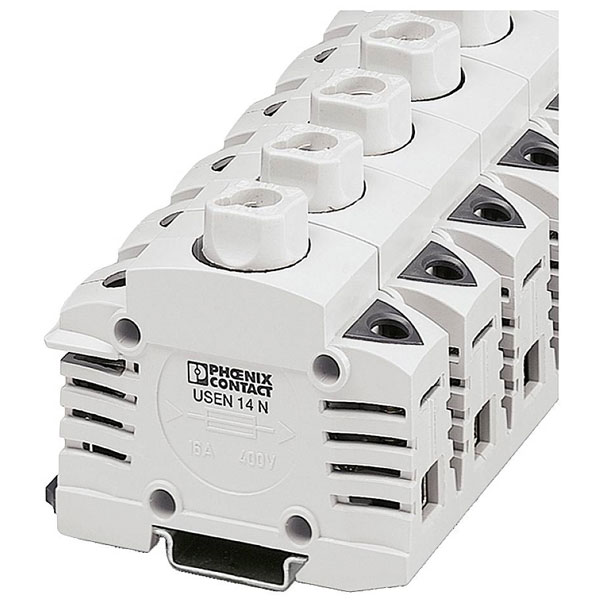

Phoenix Contact 3048357 fuse Terminal 27mm Screws light grey 1pc

The Phoenix Contact 3048357 is a fuse serial terminal with a 27 mm width, featuring screw connections and a light grey colour. It is designed for managing continuity in switchboard applications, ensuring reliable electrical connections. This component is typically used in industrial and commercial electrical panels.

Type	Fuse serial terminal
No. of Ways	2
Termination	Screw
Width	27mm
Wire Gauge (mm²)	35mm²
AWG (min.)	16
Clamp width	27mm
Closing plate required	false
Colour	Light grey
Connectable conductor cross section fine-strand with cable end sleeve	1.5 - 25mm²
Connectable conductor cross section fine-strand without cable end sleeve	1.5 - 35mm²
Connectable conductor cross section multi-wired	1.5 - 10mm²
Connectable conductor cross section solid-core	1.5 - 35mm²
Connection	Screws
Cross section (flexible) (min.)	1.5mm²
Cross section (inflexible) (min.)	1.5mm²
Current Rating	6.3A
Depth	59.86mm
Dim	(L x W x H) 82.7 x 27 x 71.9 mm
Flammability Rating	V0
Height	71.9mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V2
Insulation	Duroplast
Length	82.7mm
Material insulation body	N/A
Misc Attribute	USEN 14 N
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	400V
Number of levels	1
Number of Pins	2
Number of Rows	1
Operating Temperature	- - -°C
Rated current In	16A
Rated voltage	400V
Stripping length (max.)	19mm
Supply voltage for defect-indication	- - -V
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Type of fuse holder	N/A
Type of fuse insert	N/A
Type of indication element for defect indication	N/A
Voltage type for defect indication	N/A
Wire Gauge (AWG)	2
