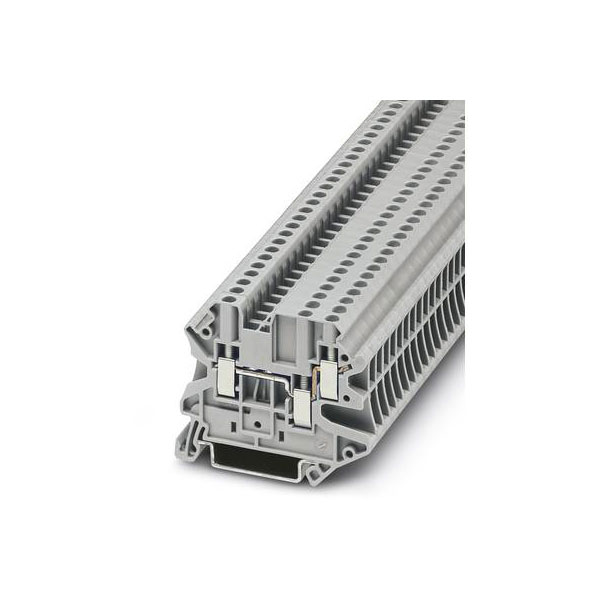

The Phoenix Contact UT 2,5-TWIN 3044513 is a feed-through terminal block designed for continuity in industrial goods. It features a compact design suitable for switchboard terminals, ensuring reliable connections in complex circuitry. Typical applications include use in electrical panels for secure wire connections.
| Type |
Continuity |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| Termination |
Screw |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
0.14 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Screws |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
24A |
| Depth |
46.9mm |
| Dim |
(L x W x H) 57.8 x 5.2 x 46.9 mm |
| Explosion-tested version Ex e |
true |
| Flammability Rating |
V0 |
| Height |
46.9mm |
| Industrial packaging |
Yes |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
57.8mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
12 |
| Misc Attribute |
UT 2,5-TWIN |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
500V |
| Number of clamp positions per level |
3 |
| Number of levels |
1.0 |
| Number of pins |
3 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
24A |
| Rated voltage |
500V |
| Stripping length (max.) |
9mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Wire Gauge (AWG) |
12 |
