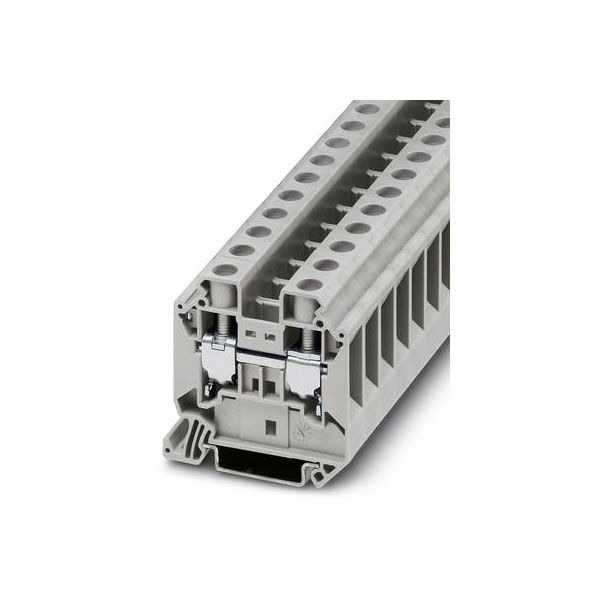

Phoenix Contact 3044199 UT 16 Terminal block Screw 1.5-25mm² grey

The Phoenix Contact UT 16 3044199 is a feed-through terminal block featuring continuity and efficient connectivity. It is commonly used in switchboards and serial terminal applications. This reliable component ensures robust electrical connections in industrial settings.

Type	Continuity
No. of Ways	2
Termination	Screw
Width	12.2mm
Wire Gauge (mm²)	25mm²
AWG (min.)	16
Clamp width	12.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	1 - 1mm²
Connectable conductor cross section fine-strand without cable end sleeve	1.5 - 25mm²
Connectable conductor cross section multi-wired	1 - 6mm²
Connectable conductor cross section solid-core	1.5 - 25mm²
Connection	Screws
Contamination level	3
Cross section (flexible) (min.)	1.5mm²
Cross section (inflexible) (min.)	1.5mm²
Current Rating	76A
Depth	54.4mm
Dim	(L x W x H) 55.5 x 12.2 x 54.4 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	54.4mm
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Internally connected stages	true
Length	55.5mm
Material insulation body	Other
Misc Attribute	UT 16
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	1000V
Number of clamp positions per level	2
Number of levels	1.0
Number of Pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
Rated current In	76A
Rated voltage	1000V
Stripping length (max.)	14mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Wire Gauge (AWG)	4
