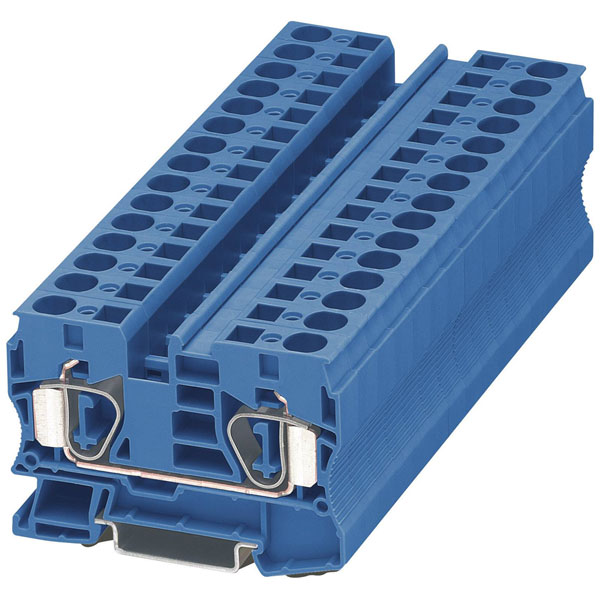

Phoenix Contact 3036123 ST feed-through Terminal blue tension spring

The Phoenix Contact 3036123 ST 10 BU is a blue tension spring feed-through terminal designed for easy installation and secure connections. With dimensions of 71.5x10.0x58mm, it is ideal for use in switchboards and continuity applications. As a rail-mounted terminal with a spring cage connection, it ensures reliable electrical performance in various industrial settings.

Type	Continuity
No. of Ways	2
No. of Levels	1
Termination	Spring Clamp
Width	10.2mm
Wire Gauge (mm²)	16mm²
AWG (min.)	24
Clamp width	10.2mm
Closing plate required	true
Colour	Blue
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.25mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 10mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 16mm²
Connection	Pull spring
Connector cross section	flexible wires 0.2 x 10 mm² · rigid wires 1.5 -16 mm²mm²
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	57A
Depth	50.3mm
Dim	(L x W x H) 71.5 x 10.2 x 50.3 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	50.3mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Internally connected stages	true
Length	71.5mm
Material insulation body	Other
Maximum Wire Size AWG	8
Misc Attribute	ST 10 BU
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	1000V
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
Rated current In	57A
Rated voltage	1000V
Stripping length (max.)	18mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Wire Gauge (AWG)	8
