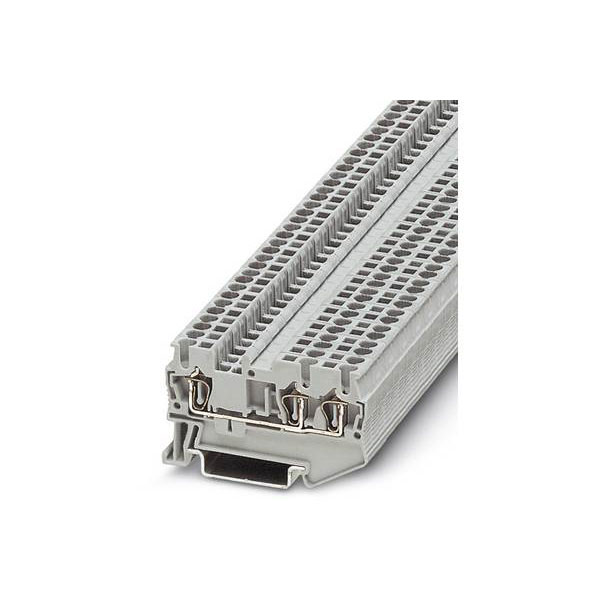

Phoenix Contact 3031241 ST 2.5-TWIN feed-through Terminal block grey

The Phoenix Contact Feed-through Terminal Block ST 2,5-TWIN 3031241 features reliable continuity and a compact design suitable for efficient wiring in electrical installations. It is commonly used for connecting pre-assembled cables in switchboards and serial terminal applications. Its robust construction ensures secure connections in demanding industrial environments.

Type	Continuity
No. of Ways	2
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	28
Clamp width	5.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.08 - 4mm²
Connection	Pull spring
Cross section (flexible) (min.)	0.08mm²
Cross section (inflexible) (min.)	0.08mm²
Current Rating	24A
Depth	36.5mm
Dim	(L x W x H) 60.5 x 5.2 x 36.5 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	36.5mm
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Internally connected stages	true
Length	60.5mm
Material insulation body	Other
Min. stripping length	8mm
Misc Attribute	ST 2,5-TWIN
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	800V
Number of clamp positions per level	3
Number of levels	1.0
Number of Pins	3
Number of Rows	1
Operating Temperature	-60 - 110°C
Rated current In	24A
Rated voltage	800V
Stripping length (max.)	10mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Wire Gauge (AWG)	14
