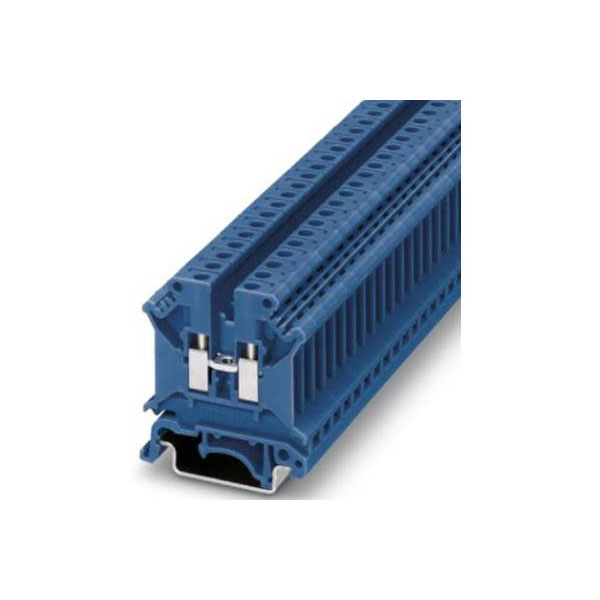

The Phoenix Contact 3004388 is a 6.2 mm blue serial terminal equipped with screws for reliable continuity in electrical connections. This switchboard terminal is designed for easy integration into electrical panels or distribution systems. It is commonly used in applications requiring secure, high-quality connections in industrial and commercial settings.
| Type |
Continuity |
| Pitch |
6.2mm |
| No. of Ways |
2 |
| Termination |
Screw |
| Width |
6.2mm |
| Wire Gauge (mm²) |
6mm² |
| AWG (min.) |
24 |
| Clamp width |
6.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 4mm² |
| Connectable conductor cross section multi-wired |
0.2 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.2 - 6mm² |
| Connection |
Screws |
| Cross section (flexible) (min.) |
0.2mm² |
| Cross section (inflexible) (min.) |
0.2mm² |
| Current Rating |
32A |
| Depth |
47mm |
| Dim |
(L x W x H) 42.5 x 6.2 x 47 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
47mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
42.5mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
12 |
| Misc Attribute |
UK 5 N BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
800V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
32A |
| Rated voltage |
800V |
| Stripping length (max.) |
8mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Wire Gauge (AWG) |
12 |
