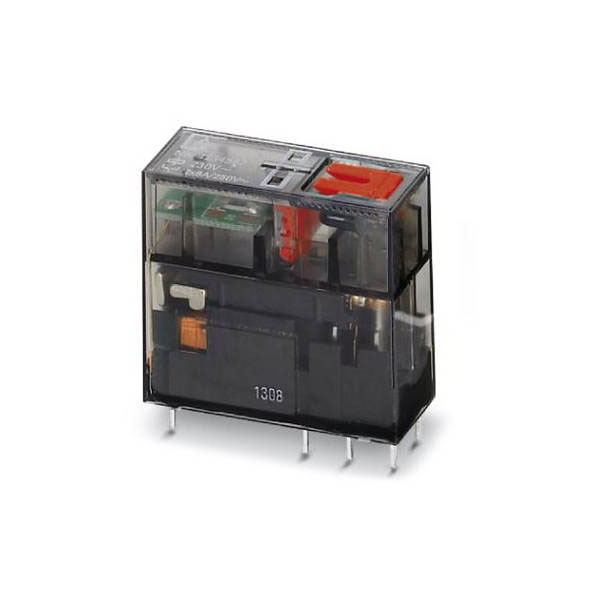

Phoenix Contact 2987956 REL-MR 24V AC 8A PCB Relay 2PDTs LED 10 pieces

Phoenix Contact manufactures the REL-MR-24AC/21-21/MS PCB relay, which operates at 24 V AC and supports 8 A current with 2 change-overs. This mini PCB relay is designed for efficient switching in electronic circuits and comes in a pack of 10 pieces. Typical applications include automation systems and control panels.

Coil Voltage	24V AC
Contact Configuration	2CO (DPDT)
Switching Current	8A
Complete with socket	false
Connection	Solder pins
Contact Material	AgNi
Control Mode	monostable, 1 coil
Degree of protection (IP)	N/A
Depth	25mm
Dimensions	(W x H x D) 12.7 x 29 x 25 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	29mm
Industrial packaging	Yes
Material contact	N/A
Material of contact insert	Other
Material of contact surface	Untreated
Max. starting current	N/AA
Max. switching capacity	2000VA
Misc Attribute	REL-MR- 24AC/21-21/MS
Mounting Type	PCB
Nominal Current	0.032A
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating voltage AC 50 Hz	- - -V
Operating voltage AC 60 Hz	- - -V
Operating voltage DC	- - -V
Rated control supply voltage AC 50 Hz	18.7 - 34.8V
Rated control supply voltage AC 60 Hz	18.7 - 34.8V
Rated control supply voltage DC	- - -V
Relay technology category according to IEC 61810-7	N/A
Type	PCB relay
Type of electric connection	Other
Type of switch contact	Single contact
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC
Width	12.7mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	false
