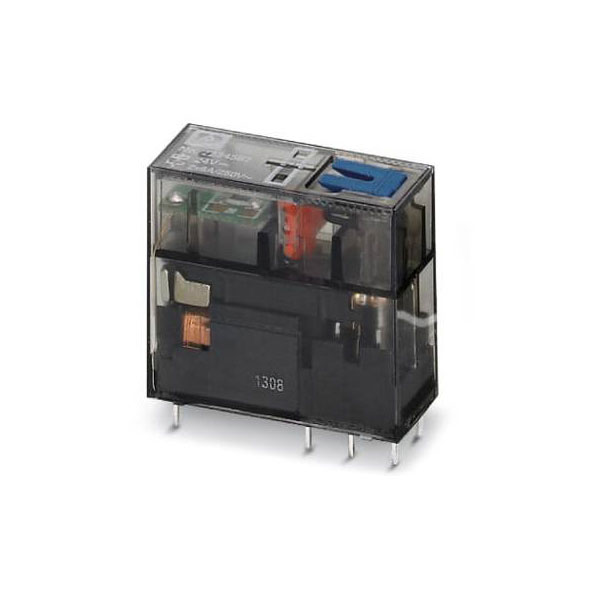

Phoenix Contact 2987943 REL-MR PCB Relay 24V DC 8A 2 PDTs 10 Pack

Phoenix Contact manufactures the REL-MR- 24DC/21-21/MS PCB relay, which operates at 24 V DC and can handle up to 8 A. This relay features two change-overs and is primarily used in printed circuit boards. Typical applications include electronic switching in industrial automation and control systems.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Switching Current	8A
Complete with socket	false
Connection	Solder pins
Contact Material	AgNi
Control Mode	monostable, 1 coil
Degree of protection (IP)	N/A
Depth	25mm
Dimensions	(W x H x D) 12.7 x 29 x 25 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	29mm
Industrial packaging	Yes
Material contact	N/A
Material of contact insert	Other
Material of contact surface	Untreated
Max. starting current	N/AA
Max. switching capacity	2000VA
Misc Attribute	REL-MR- 24DC/21-21/MS
Mounting Type	PCB
Nominal Current	0.018A
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating voltage AC 50 Hz	- - -V
Operating voltage AC 60 Hz	- - -V
Operating voltage DC	- - -V
Rated control supply voltage AC 50 Hz	- - -V
Rated control supply voltage AC 60 Hz	- - -V
Rated control supply voltage DC	19.2 - 52.8V
Relay technology category according to IEC 61810-7	N/A
Type	PCB relay
Type of electric connection	Other
Type of switch contact	Single contact
Voltage type (operating voltage)	N/A
Voltage type for actuating	DC
Width	12.7mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	false
