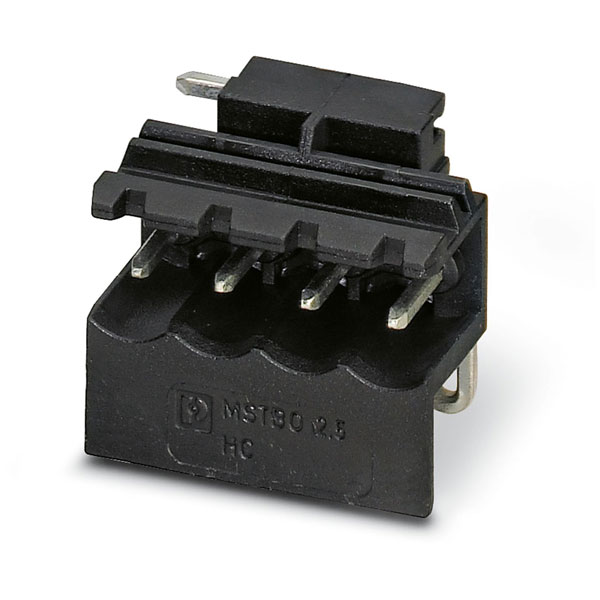

Phoenix Contact 2909002 MSTBO 2,5/ 4-G1L BK Feed Through Header -
PCB headers, nominal cross section: 2.5 mm2
Colour: black
Nominal current: 12 A
Rated voltage (III/2): 320 V
Contact surface: Sn,
Contact connection type: Pin
Number of rows: 1
Number of positions: 4
Product range: MSTBO 2,5/..-G1L
Pitch: 5 mm
Mounting: Wave soldering
Pin layout: Linear pinning
Solder pin [P]: 3.5 mm
Number of solder pins per potential: 1
Plug-in system: COMBICON MSTB 2,5
Pin connector pattern alignment: Orthogonal
Locking: without
Type of packaging: packed in cardboard
Product with pin output on left side
- Product type: PCB headers
- Product family: MSTBO 2,5/..-G1L
- Product line: COMBICON Connectors M
- Number of positions: 4
- Pitch: 5mm
- Number of rows: 1
- Mounting flange: no
- Pin layout: Linear pinning
- Solder pins per potential: 1
| Body Style |
Vertical Open Ended Header |
| Pitch |
5mm |
| No of Ways Per Row |
4 |
| No. of Rows |
1 |
| Current Rating |
12A |
| Colour |
Black |
| Wire Gauge (AWG) |
N/A |
| Wire Gauge (mm²) |
N/A |
| Angle PCB/contact |
N/A |
| Connector model |
Fixed connector |
| Contact Type |
Pin |
| Diameter connection pin |
1.4mm |
| Housing Colour |
Black |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
3.5mm |
| Material insulation body |
Other |
| Material of contact surface |
Tin |
| Modular spacing connections |
5mm |
| Modular spacing contacts |
5mm |
| Mounting - Header |
Wave Soldering |
| Mounting Feature |
Linear Pinning |
| Mounting Type |
PCB |
| Number of plug-in contact rows |
1 |
| Number of Poles |
N/A |
| Operating Temperature |
-40 - 105°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Product family |
MSTBO 2,5/..-G1L |
| Product Type |
PCB headers |
| Rated current In |
12A |
| Rated Surge Voltage |
4kV |
| Rated voltage |
320V |
| Suitable for PCB thickness |
N/Amm |
| Type of banding |
Carton (for SMD) |
| Type of connection |
N/A |
| Type of electric connection |
Other |
| Type of fastening |
N/A |
| Type of PCB fastening |
N/A |
| Voltage Rating |
320V |
