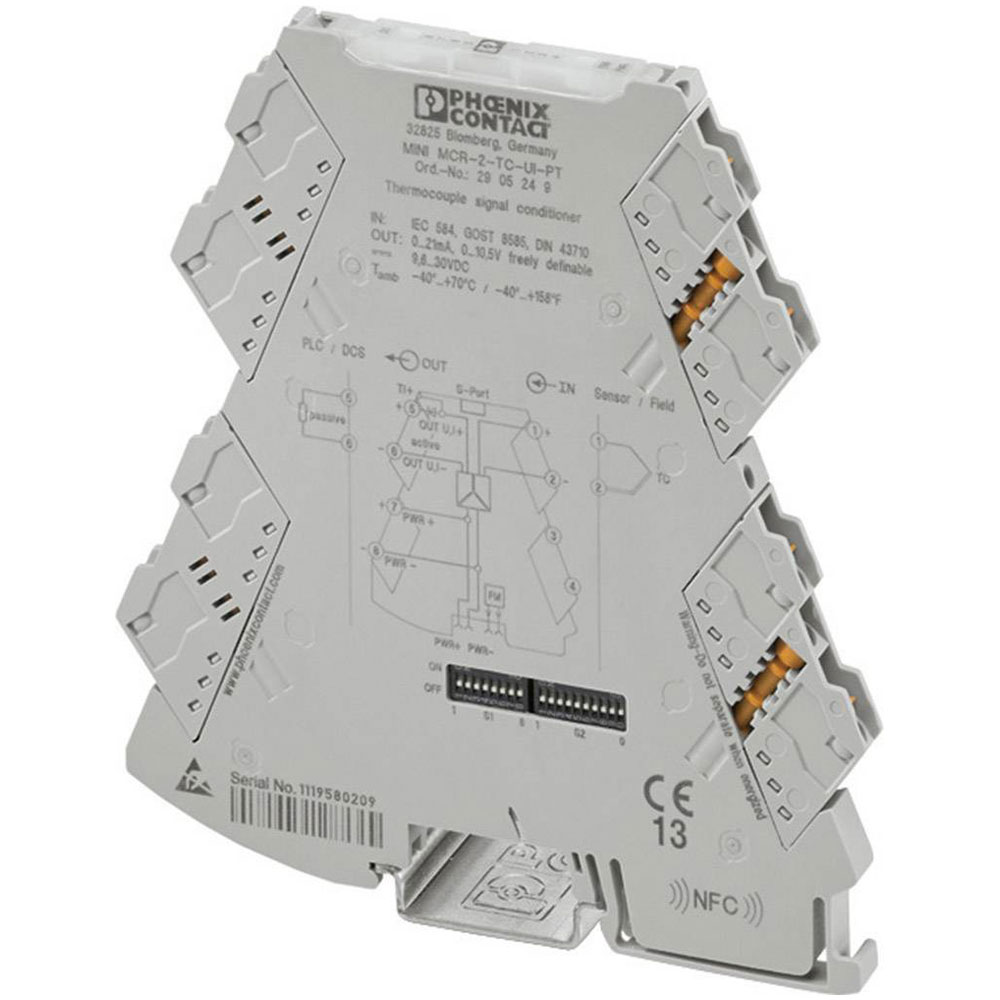

Phoenix Contact 2905249 MINI MCR-2-TC-UI-PT thermocouple transducer

The Phoenix Contact MINI MCR-2-TC-UI-PT is a configurable temperature measuring transducer designed for accurate and reliable temperature monitoring. With versatile input options and easy configuration, it is suitable for industrial applications requiring precise temperature control. Typical applications include process automation and monitoring in manufacturing environments.

Type	MINI MCR-2-TC-UI-PT
Ambient temperature	70 - -40°C
Analogue output 0 mA ... 20 mA	true
Analogue output 0 V ... 10 V	true
Analogue output 0 V ... 2 V	false
Analogue output 0 V ... 5 V	true
Analogue output 2 V ... 10 V	false
Analogue output 4 mA ... 20 mA	false
Connection	Push-In
Current Consumption	32.7 mA (at 24 V/DC) 66.8 mA (at 12 V/DC)
Dimensions	(L x W x H) 120.5 x 6.2 x 110.5 mm
EMC-version	true
Height	110.5mm
Integrated configuration function	true
IP Rating	IP20
Length	120.5mm
Load	Output load current output: ≤ 600 Ω (with 20 mA)
Max. ambient temperature	+85°C
Measuring Range	-250 - 2500°C
Min. ambient temperature	-40°C
Misc Attribute	MINI MCR-2-TC-UI-PT
Output signal	DIP switch 0-5 V, 1-5 V, 0-10V, 10-0 V, 0-20mA, 4-20mA,20-0mA, 20-4 mA · Software: 0-10.5 V, 0-21mA
Setting	DIP switches or software
Suitable for distribution board	true
Supply Voltage	9,6 - 30V DC
Weight	0.11kg
Width	6.2mm
With switching output	false
