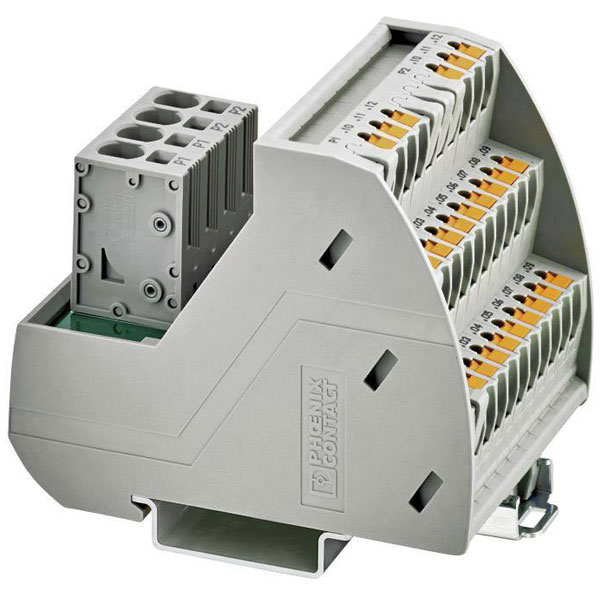

Phoenix Contact 2903797 Varioface-VIP Distribution block 1 piece

The Phoenix Contact distribution block Varioface-VIP offers efficient transfer module capabilities and features a compact design. It is ideal for simplifying wiring tasks, enhancing organisation in electrical cabinets. This device is typically used in industrial automation and control systems.

Type	Distribution block
No of Ways	16
Wire Gauge	6mm²
Conductor cross section flexible (fine-strand) with cable end sleeve	0.25 - 4mm²
Conductor cross section solid (solid, stranded)	0.25 - 6mm²
Connector (control)	Pull spring
Connector (field)	Pull spring
Cross section (flexible) (min.)	0.25mm²
Cross section (inflexible) (min.)	0.25mm²
Depth	63mm
Dim	(L x W x H) 63 x 41.90 x 75.80 mm
Height	75.80mm
Length	63mm
Max. rated current	30A
Max. temperature	+50°C
Min. stripping length	8mm
Min. temperature	-20°C
Mounting Type	Mounting rail
Number of clamp positions per pole	8
Number of Pins	16
Number of Poles	2
Operating Current	30A
Series	Varioface-VIP
Stripping length (max.)	15mm
Width	41.90mm
With N-rail	false
With PE-rail	false
