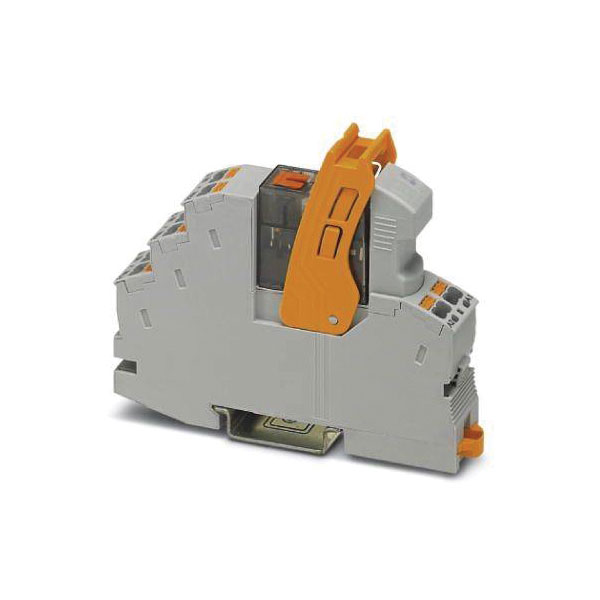

Phoenix Contact 2903326 RIF-2-RSC Relay 24V DC 10A 2 Changeover Contacts

Phoenix Contact 2903326 RIF-2-RSC Relay 24V DC 10A 2 Changeover Contacts

Phoenix Contact
Order Code:

06-2449

Brand: Phoenix Contact MPN: 2903326 EAN-13: 4046356732222

Discontinued


The Phoenix Contact relay module, part number 2903326, operates at a nominal voltage of 24 V DC and can handle a maximum switching current of 10 A with 2 change-overs. It is ideal for use in industrial applications due to its robust design and dependable performance. Typical applications include automation systems and electrical control panels that require reliable switching capabilities.
Type Relay component
Length 75mm
Width 27mm
Height 89mm
Connection Screws
Contact Material AgNi
Contact Type 2 change-overs
Dim (L x W x H) 75 x 27 x 89 mm
Durability 2x 10 7 operations
Fall Time 14ms
IP Rating IP20
Max. temperature +60°C
Min. temperature -40°C
Misc Attribute RIF-2-RSC-LDP-24DC/2X21
Nominal Voltage 24V DC
Response Time 13ms
Switching current (max.) 10A
Switching voltage (max.) 250V DC/AC
