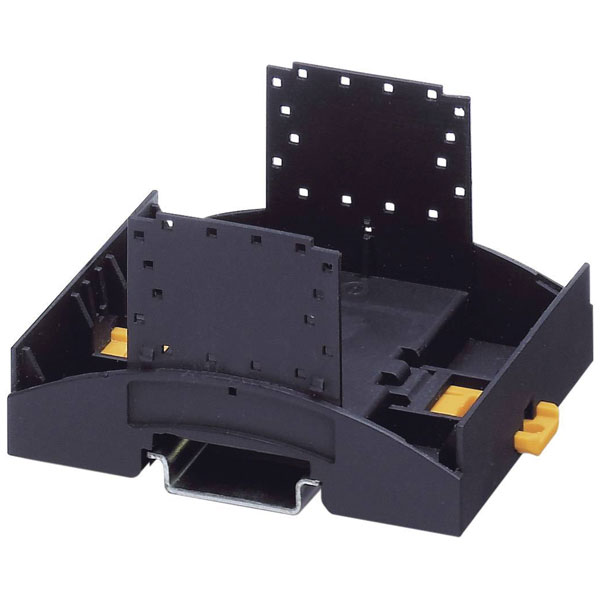

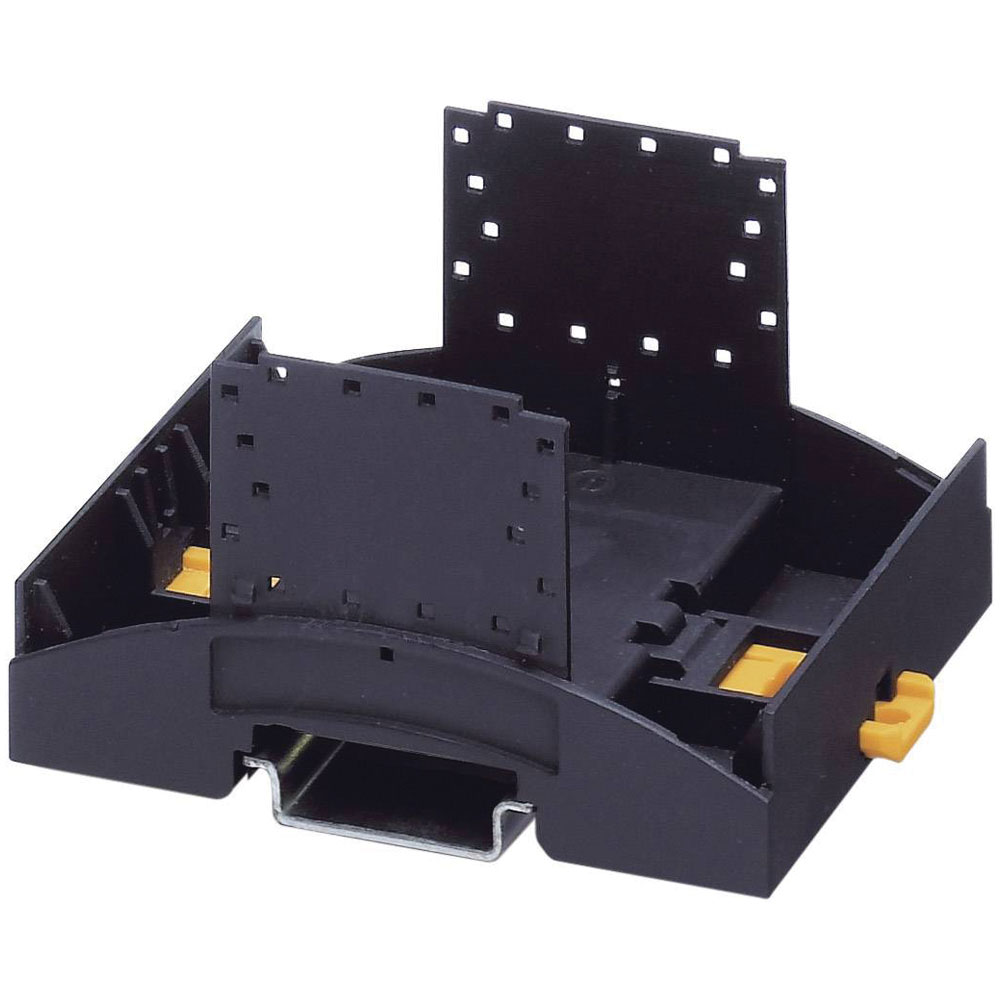

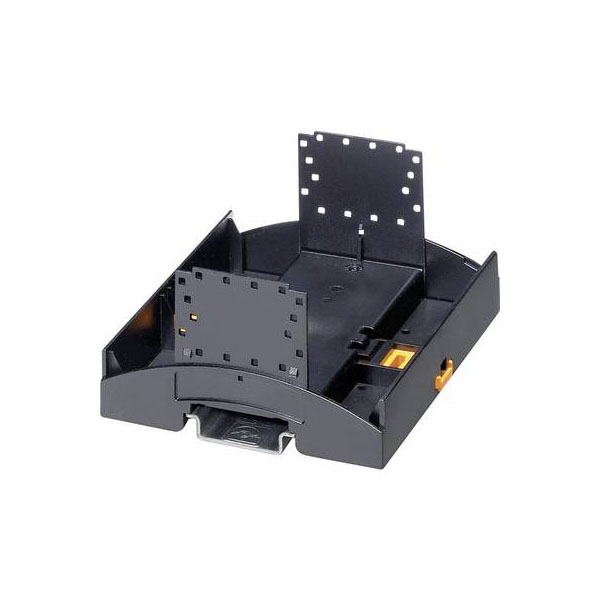

Phoenix Contact 2896403 BC 53.6 UT HBUS BK DIN rail casing PC Black 1pc

The Phoenix Contact BC 53,6 UT HBUS BK is a polycarbonate DIN rail casing (bottom part) in a sleek black colour, with dimensions of 89.7 x 53.6 x 62.6 mm. Its durable design is ideal for housing electronic components, making it a reliable choice for component protection in electrical cabinets. This part is well-suited for use in top hat rail cases within various industrial and commercial applications.

Type	DIN rail casing (bottom part)
Enclosure Height	62.6mm
Enclosure Length	89.7mm
Enclosure Width	53.6mm
Colour	Black
Protection Rating	None
Compatible with (details)	BC 53.6
Depth	48.9mm
Dim	(L x W x H) 89.7 x 53.6 x 62.6 mm
Height	89.7mm
Housing connectable	false
Material	Polycarbonate
Misc Attribute 1	BC 53,6 UT HBUS BK
Misc Attribute 2	BC 53.6 UT HBUS BK
Misc Attribute 3	Lower section
RAL-number	9005
Suitable for rail mounting	N/A
Surface finishing	Other
Type of enclosure	Closed
Wall mounting possible	N/A
Width	53.6mm
With integrated PCB-mounting connection system	N/A
