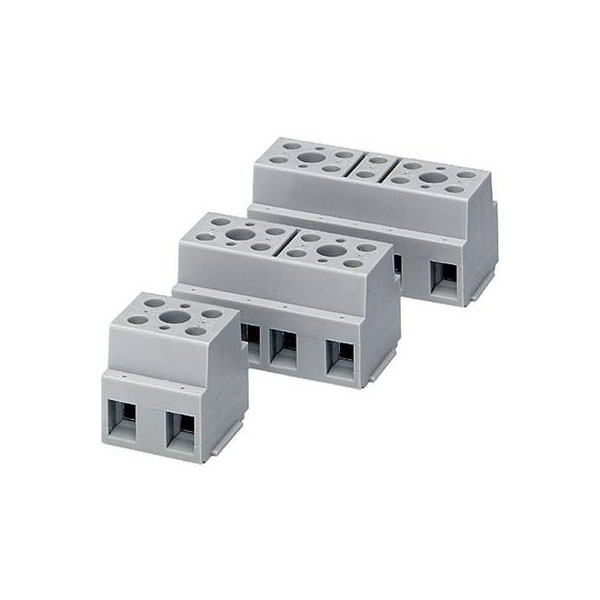

Phoenix Contact 2716703 G Series Appliance Connector 6mm² 2-Pin Grey

Phoenix Contact manufactures the 2716703 G 10/2 appliance connector, which features flexible and fixed connections, both supporting up to 6 mm². This grey, two-pin connector is designed for use in various electronic and electrical appliances, adhering to EU standard terminals. It is ideal for securely connecting cables in a wide range of industrial and commercial applications.

Colour	Grey
Current Rating	57A
Type	Appliance connector
Number of Ways	2
Voltage Rating	800V
Closing plate required	true
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	0.5 - 10mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection (type)	Screw Terminal
Connections	4
Connector clip features	Mounting hole
Content	10 pc
Current Rating (A)	57
Depth	N/Amm
Dim	(L x W) 33 mm x 29 mm
Drill hole distance centrically	N/Amm
Explosion-tested version Ex e	false
Halogen free	N/A
Height	N/Amm
Inflammability class of insulation material according to UL94	N/A
Insulation Material	PA
Length	33mm
Length (mm)	33mm
Material (details)	Polyamide
Material insulation body	N/A
Misc Attribute 1	4 connections
Misc Attribute 2	G 10/ 2
Mounting method	Other
Nominal Current	57 A
Number of clamp positions per pole	N/A
Number of pins	2
Number of Poles	2
Operating Temperature	- - -°C
Product Type	Terminal Block
Rated current In	N/AA
Rated voltage	N/AV
Series	G 10
Stripping length (max.) mm	12mm
Temperature Range	-60 to +110°C
Transparent	N/A
Type of electrical connection 1	N/A
Type of electrical connection 2	N/A
Voltage Rating (V, V DC)	800 V
Weight (g, g/m)	37g
Width	29mm
Width (mm)	29
Wire Gauge	6mm²
Wire protection	Yes
