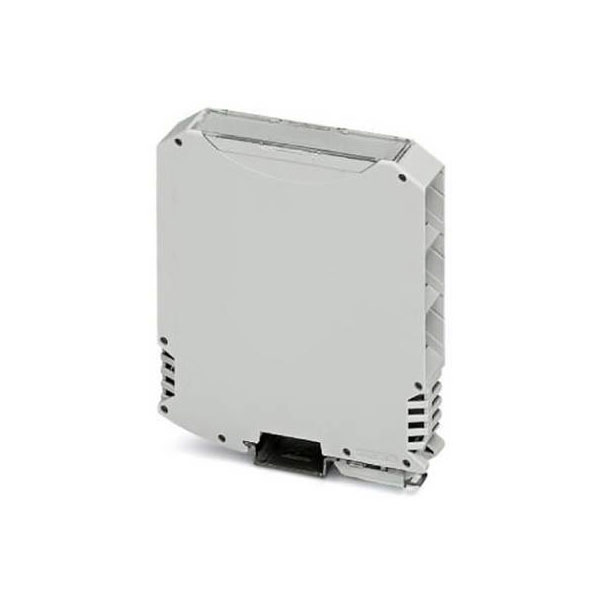

Phoenix Contact 2713939 ME MAX DIN rail casing 99x22.5x114.5mm grey

Phoenix Contact's ME MAX 22,5 3-3 KMGY is a light grey polyamide DIN rail casing measuring 99 x 22.5 x 114.5 mm. It is designed for creating custom enclosures, offering durability and secure housing for electronic components. Ideal for industrial automation and control systems, this casing provides reliable protection and a professional appearance.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	22.5mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 22.5 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	ME MAX 22,5 3-3 KMGY
Misc Attribute 2	Complete housing
Operating Temperature	-40 - 105°C
Pins	24
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	22.6mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
