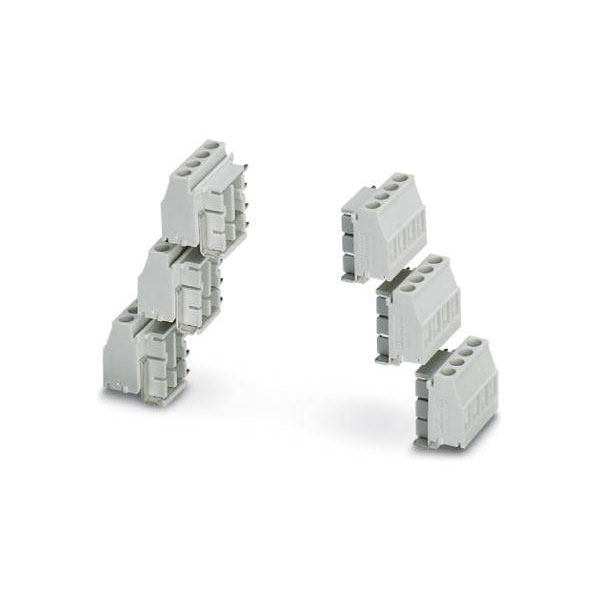

Phoenix Contact 2713751pcB Terminal block 4-pin 2.50 mm² grey 1pc

The Phoenix Contact 2713751 is a grey screw terminal block designed for printed circuit boards, featuring a capacity of 2.50 mm² and four pins. It serves as a reliable PCB connector, ideal for secure electrical connections in various electronic applications. This robust component is typically used in industrial and commercial electronic systems.

Pitch	5mm
No. of Ways	4
Mounting Type	Through Hole
Mounting Direction	Horizontal
Wire Gauge (AWG)	26 - 14 AWG
Wire Termination	Rising Clamp
Angle PCB/conductor connection	N/A
AWG (min.)	26
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 2.5mm²
Connectable conductor cross section multi-wired	0.14 - 0.75mm²
Connectable conductor cross section solid-core	0.14 - 2.5mm²
Connection type conductor	Screw connection
Connection type PCB	Soldering connection
Cross section (flexible) (max.)	2.50mm²
Cross section (flexible) (min.)	0.14mm²
Cross section (inflexible) (max.)	2.50mm²
Cross section (inflexible) (min.)	0.14mm²
CS	5.00mm
Current Rating	24A
Degree of protection (IP), mounted	N/A
Diameter connection pin	N/Amm
Factory colour	Grey
Height	19.95mm
Housing Colour	Grey
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Length	15.30mm
Length pin	3.5mm
Material connection surface	Tin
Material insulation body	Other
Misc Attribute	MKDSO 2,5/4-6 SET KMGY
Modular spacing connections	5mm
No. of Levels	1
Number of electrical connections	4
Number of levels	1
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pins per row	4
Pollution degree	2
Rated current In	24A
Rated Surge Voltage	4kV
Rated voltage	400V
Series	MKDSO
Stripping length (max.)	8.00mm
Type	Screw terminal
Type of banding	Carton (for SMD)
Type of fastening	Solder
Type of PCB fastening	Connecting contact
Voltage Rating	400V
Width	21.25mm
