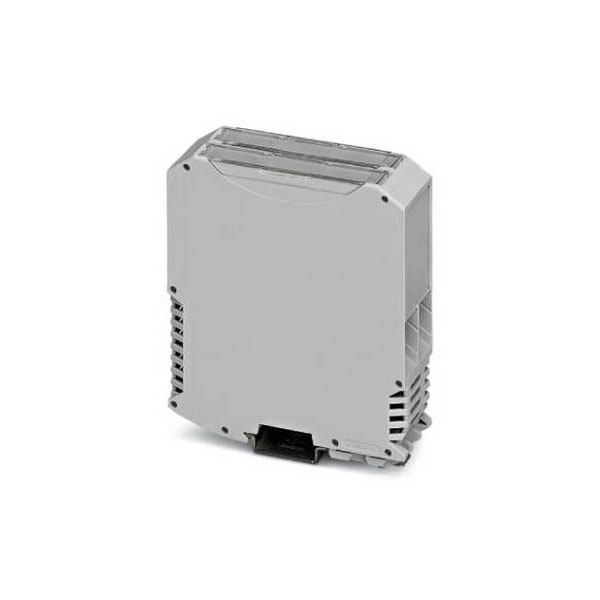

Phoenix Contact 2713667 ME MAX 35 DIN rail casing 99x35x114.5mm grey

The Phoenix Contact ME MAX 35 U-U1 KMGY is a light grey DIN rail casing made of polyamide, measuring 99 x 35 x 114.5 mm. It provides robust and durable housing for electronic components, ensuring protection and organisation within electrical cabinets. This casing is typically used in industrial automation and control systems for mounting circuitry and devices efficiently.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	35mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 35 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	Complete housing with inserted din rail bus connector
Misc Attribute 2	ME MAX 35 U-U1 KMGY
Operating Temperature	-40 - 105°C
Pins	6
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	35.2mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
