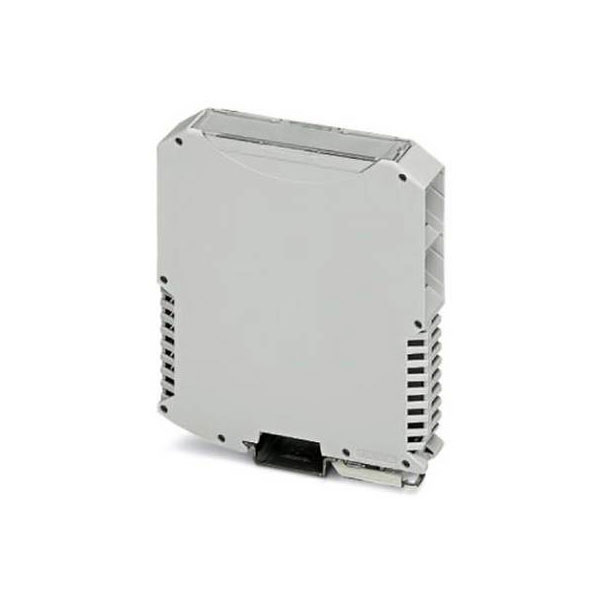

Phoenix Contact 2713625 ME MAX DIN rail casing 99x22.5x114.5 Polyamide

Phoenix Contact's ME MAX 22,5 2-2 KMGY is a light grey DIN rail casing made from polyamide, measuring 99 x 22.5 x 114.5 mm. The enclosure is designed for secure and reliable mounting of electronic components in industrial environments. Typical applications include control panels and electrical distribution systems.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	22.5mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 22.5 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	ME MAX 22,5 2-2 KMGY
Misc Attribute 2	Complete housing
Operating Temperature	-40 - 105°C
Pins	16
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	22.6mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
