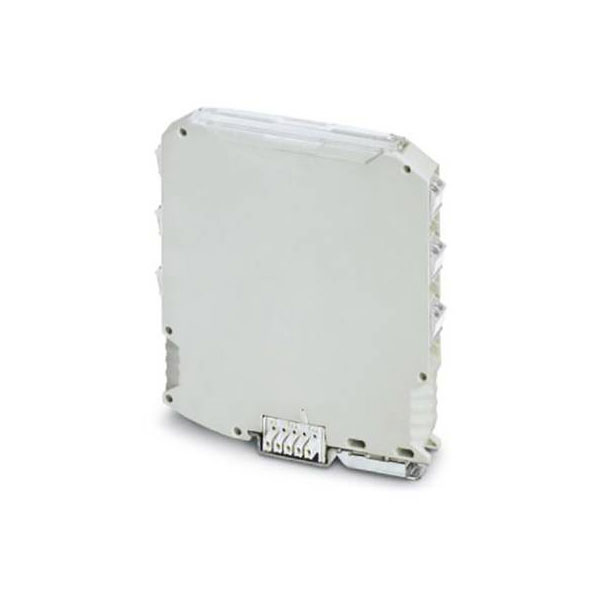

Phoenix Contact 2279020 ME MAX DIN rail casing polyamide light grey

The Phoenix Contact ME MAX 12,5 3-3 TBUS KMGY is a light grey, polyamide DIN rail casing measuring 99 x 12.5 x 114.5 mm. This case is designed for efficient housing of electronic components and offers easy integration into modular automation systems. It is typically used in industrial control panels and automation technology applications.

Type	DIN rail casing
Enclosure Height	114.5mm
Enclosure Length	99mm
Enclosure Width	12.5mm
Colour	Light grey
Protection Rating	None
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	113.65mm
Dim	(L x W x H) 99 x 12.5 x 114.5 mm
Height	99mm
Housing connectable	N/A
Material	Polyamide
Misc Attribute 1	Complete housing with 3 connecting levels on each side.
Misc Attribute 2	ME MAX 12,5 3-3 TBUS KMGY
Operating Temperature	-40 - 105°C
Pins	12
RAL-number	N/A
Suitable for rail mounting	true
Surface finishing	N/A
Type of enclosure	N/A
Wall mounting possible	false
Width	12.6mm
Width in number of modular spacings	N/A
With integrated PCB-mounting connection system	false
With screening	N/A
With ventilation slots	true
