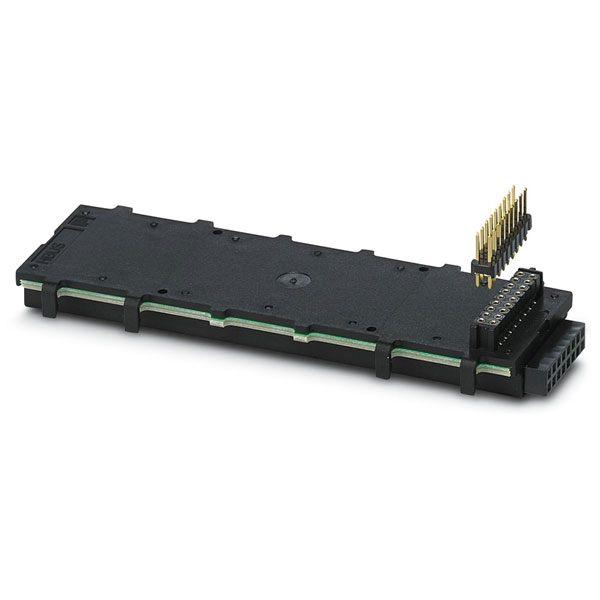

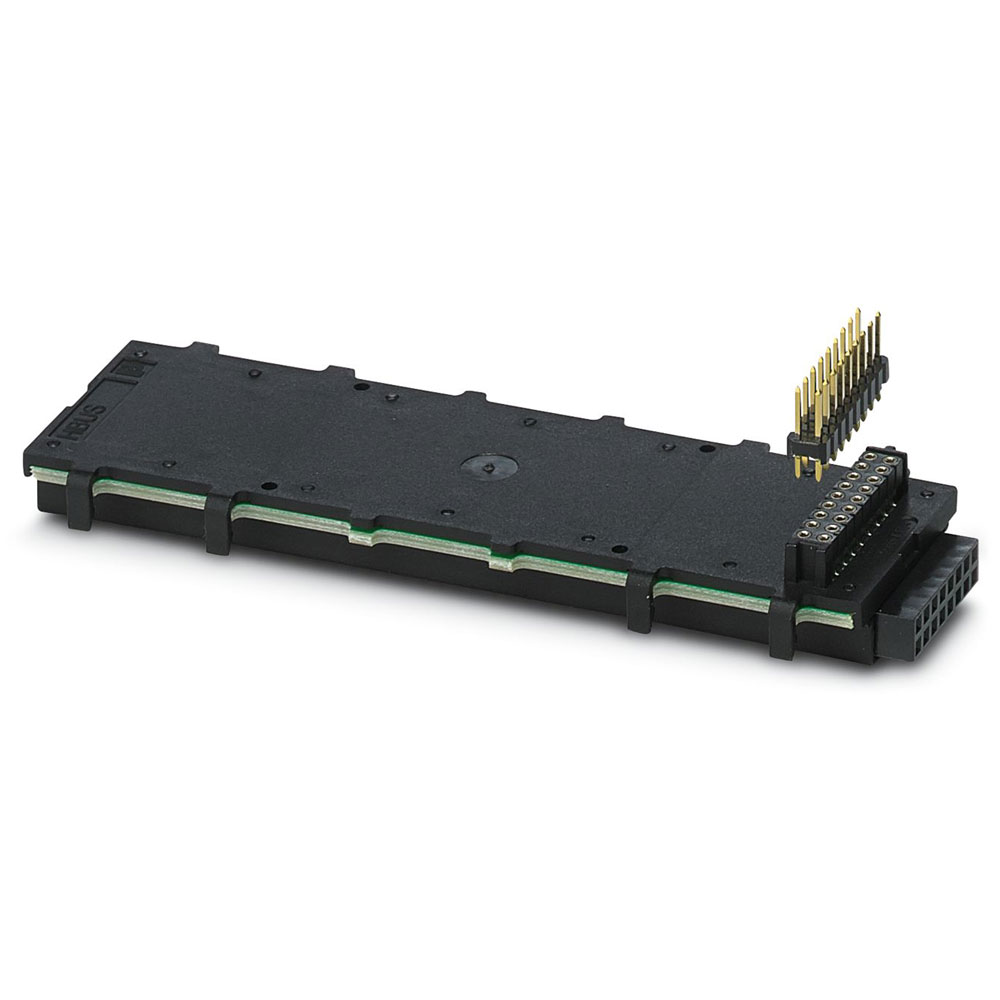

Phoenix Contact 2202545 HBUS 107,6-16P-1S DEV-KIT BK DIN Rail Bus Connector

A Phoenix Contact 2202545 HBUS DEV-KIT BK Bus connector to connect BC modules on the DIN rail. This product is suitable for BC DEV-KITS, and contains HBUS 107,6 and pin strip.

• Product Type: DIN Rail Connector
• Product Family: BC 107,6
• Number of Positions: 16
• Pitch: 2.54mm

Type	DIN Rail Bus Connector
Enclosure Width	107.6mm
Colour	Black
Protection Rating	None
Angle contact/conductor connection	Other
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	- - -mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	- - -mm²
Contact Type	N/A
Degree of protection (IP), mounted	N/A
Housing Colour	Black
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Material	PA
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	N/A
Modular spacing connections	2.54mm
Modular spacing contacts	2.54mm
Number of plug-in contact rows	N/A
Number of Poles	16
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pollution degree	2
Product family	BC 107,6
Rated current In	3A
Rated Surge Voltage	0.8kV
Rated voltage	30V
Type of connection	Other
Type of electric connection	N/A
With protective conductor	N/A
