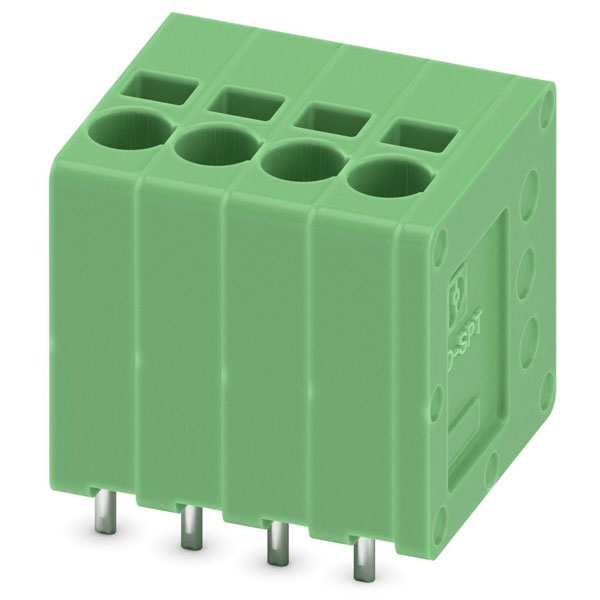

Phoenix Contact 1990876 SPT 1,5/ 4-V-3,5, 4-way PCB terminal block from the COMBICON Terminals S product range has a pitch of 3.5mm and a current rating of 17.5A with a rated voltage (III/2) of 200V. It features a push-in spring termination and is designed for use with wires 24-16AWG.
| Pitch |
3.5mm |
| No. of Ways |
4 |
| Mounting Type |
PCB |
| Mounting Direction |
Horizontal |
| Wire Gauge (AWG) |
24 to 16AWG |
| Wire Termination |
Push-fit Spring |
| Angle PCB/conductor connection |
N/A |
| Colour |
Green |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 1.5mm² |
| Connectable conductor cross section multi-wired |
1.5 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.2 - 1.5mm² |
| Connection type conductor |
Spring clamp connection |
| Connection type PCB |
Soldering connection |
| Current Rating |
17.5A |
| Degree of protection (IP), mounted |
N/A |
| Diameter connection pin |
N/Amm |
| Height |
16.9mm |
| Housing Colour |
Green |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
2.5mm |
| Material connection surface |
Tin |
| Material insulation body |
Other |
| Modular spacing connections |
3.5mm |
| No. of Levels |
1 |
| Number of electrical connections |
4 |
| Number of levels |
1 |
| Operating Temperature |
-40 - 105°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
17.5A |
| Rated Surge Voltage |
2.5kV |
| Rated voltage |
200V |
| Type of banding |
Carton (for SMD) |
| Type of fastening |
N/A |
| Type of PCB fastening |
N/A |
| Voltage Rating |
200V |
| Wire Gauge (mm²) |
1.5mm² |
