Phoenix Contact 1904969 spring-loaded Terminal 2.50 mm² 1-pin green

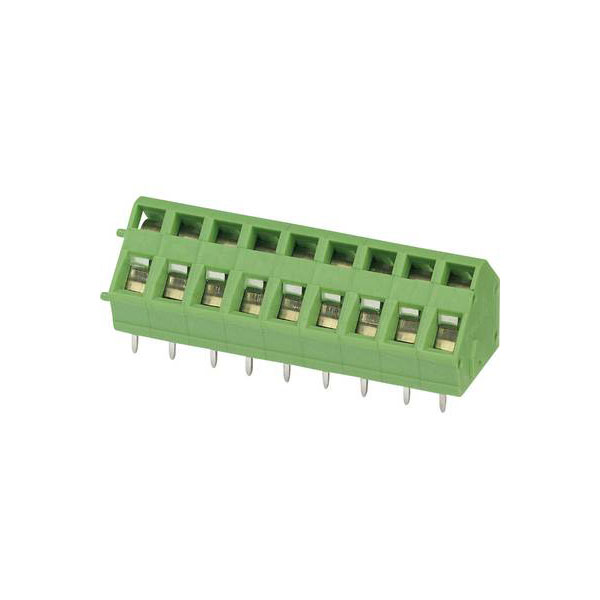

Image Representative of Range

Phoenix Contact 1904969 spring-loaded Terminal 2.50 mm² 1-pin green

Phoenix Contact
Order Code:

06-2327

Brand: Phoenix Contact MPN: 1904969 EAN-13: 2050000386114
Qty Unit Price (Ex VAT)
20+ £0.220
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
250 in stock, despatched in 4 working days

The Phoenix Contact 1904969 is a green spring-loaded terminal designed for a 2.50 mm² connection with a single pin configuration. Its robust design makes it suitable for reliable connections in electrical control panels and printed circuit boards. This component is ideal for use in various industrial and electronics applications requiring efficient and secure wiring solutions.
AWG (min.) 24
AWG max. 12
Connector orientation At an angle (to the PCB)
Contact Material Cathode copper, tin plated
Cross section (flexible) (max.) 2.50mm²
Cross section (flexible) (min.) 0.20mm²
Cross section (inflexible) (max.) 4.00mm²
Cross section (inflexible) (min.) 0.20mm²
CS 5.08mm
Enclosure material Polyamide 6.6
Factory colour Green
Height 16.85mm
Industrial packaging Yes
Length 5.08mm
Min. stripping length 7mm
Misc Attribute ZFKDS 2,5-5,08
Nominal Current 24A
Nominal current - rounded value 24A
Nominal Voltage 400V
Number of Pins 1
Number of Rows 1
Pins per row 1
Series ZFKDS(A)
Stripping length (max.) 7mm
Type Spring-loaded terminal
Width 17.70mm
Wire protection Yes
