Phoenix Contact 1838296 SPT-THR 1,5/ 5-H-5,0 Terminal Block 13.5A 5 Way 5mm (5)

This set of Phoenix Contact 1838296 5-way, single row, 13.5A, 320V, 5mm pitch vertical PCB mounting feed-through headers are from the SPT-THR 1,5/H-5,0 series.

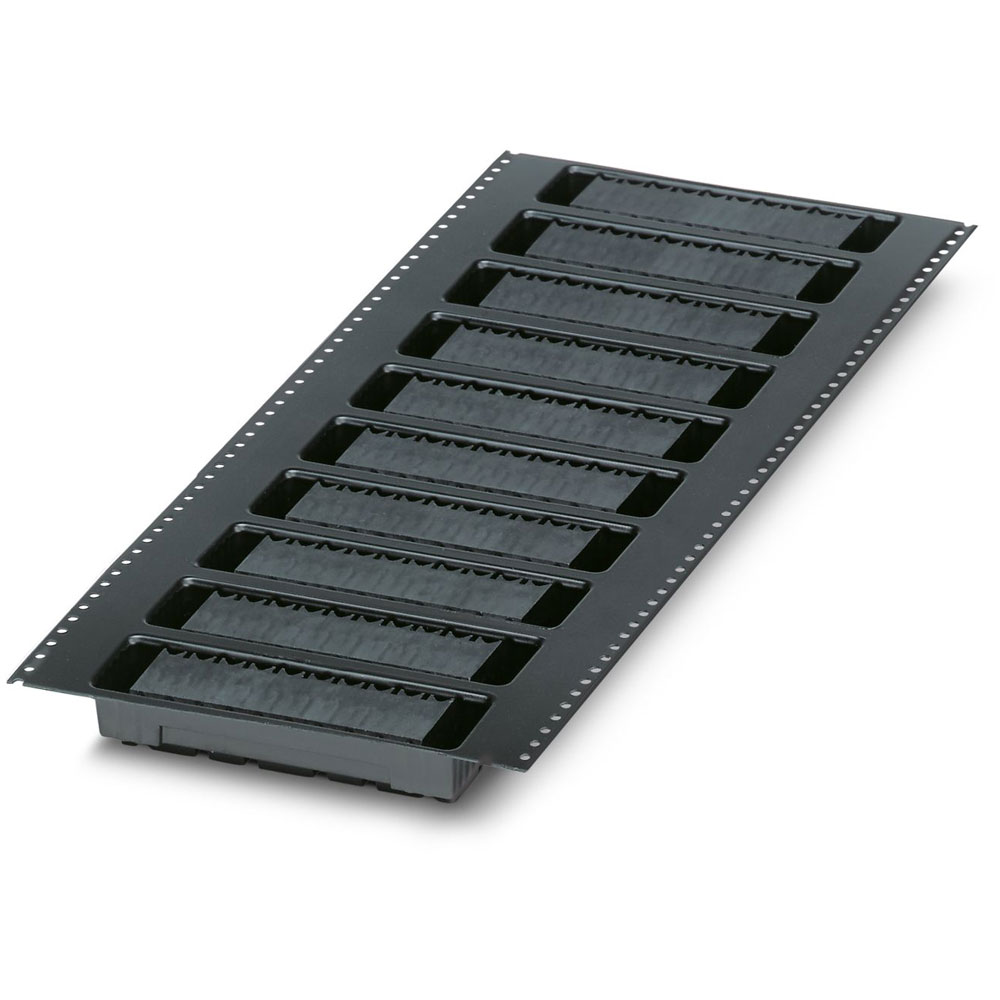

Supplied as a SAMPLE SET with 5 items in a belt section. When used as part of a soldering process, please use items without SAMPLE marking.

• No. of ways: 5
• Supplied in a 5-piece sample set
• Nominal current: 13.5A
• Rated voltage: 160V
• Pitch: 5mm
• Length: 13.6mm
• Width: 24mm
• Height: 9.7mm
• Through-hole PCB mounting with linear double pinning
• Housing colour: black
• Time saving push-in connection, tools not required
• Defined contact force ensures that contact remains stable over the long term
• Intuitive use through colour coded actuation lever
• Designed for integration into the SMT soldering process
• Operation and conductor connection from one direction enable integration into front of device
• Quick and convenient testing using integrated test option
• Two solder pins reduce the mechanical strain on the solder pads
