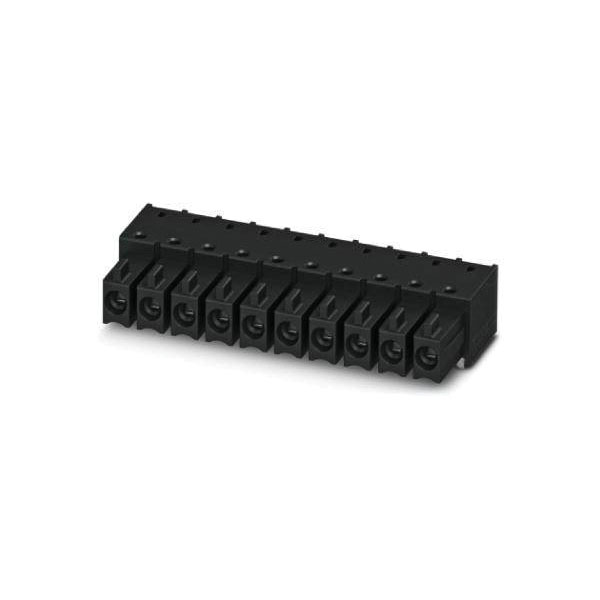

Phoenix Contact manufactures a socket housing PCB with a total of 5 pins and a contact spacing of 3.5 mm. The IMC 1,5/5-G-3,5 P20 THR is designed for efficient and reliable electrical connections on printed circuit boards. Commonly used in electronics and automation systems, it ensures secure connectivity in a variety of applications.
| Body Style |
Plug, horizontal mount |
| Pitch |
3.5mm |
| No of Ways Per Row |
5 |
| No. of Rows |
1 |
| Current Rating |
8A |
| Colour |
Black |
| Wire Gauge (AWG) |
N/A |
| Wire Gauge (mm²) |
N/A |
| Angle PCB/contact |
N/A |
| Board contact surface |
Tin |
| Connection |
Print |
| Connector contact surface |
Tin |
| Connector model |
Other |
| Contact Material |
Cu-alloy, tin plated |
| Contact Type |
Bus |
| Diameter connection pin |
1.2mm |
| Dim |
(L x W x H) 14.5 x 18.3 x 8.3 mm |
| Height |
8.3mm |
| Housing Colour |
Black |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation Material |
LCP |
| Length |
14.5mm |
| Length pin |
2mm |
| Material insulation body |
Other |
| Material of contact surface |
Other |
| Maximum Temperature |
+100°C |
| Min. temperature |
-40°C |
| Misc Attribute |
IMC 1,5/ 5-G-3,5 P20 THR |
| Modular spacing connections |
3.5mm |
| Modular spacing contacts |
3.5mm |
| Nominal Voltage |
160V |
| Number of plug-in contact rows |
1 |
| Number of Poles |
5 |
| Operating Temperature |
-40 - 100°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
8A |
| Rated Surge Voltage |
2.5kV |
| Rated voltage |
160V |
| Suitable for PCB thickness |
N/Amm |
| Total number of pins |
5 |
| Type |
Socket housing PCB |
| Type of banding |
Carton (for SMD) |
| Type of connection |
N/A |
| Type of electric connection |
Other |
| Type of fastening |
Other |
| Type of PCB fastening |
N/A |
| Width |
18.3mm |
