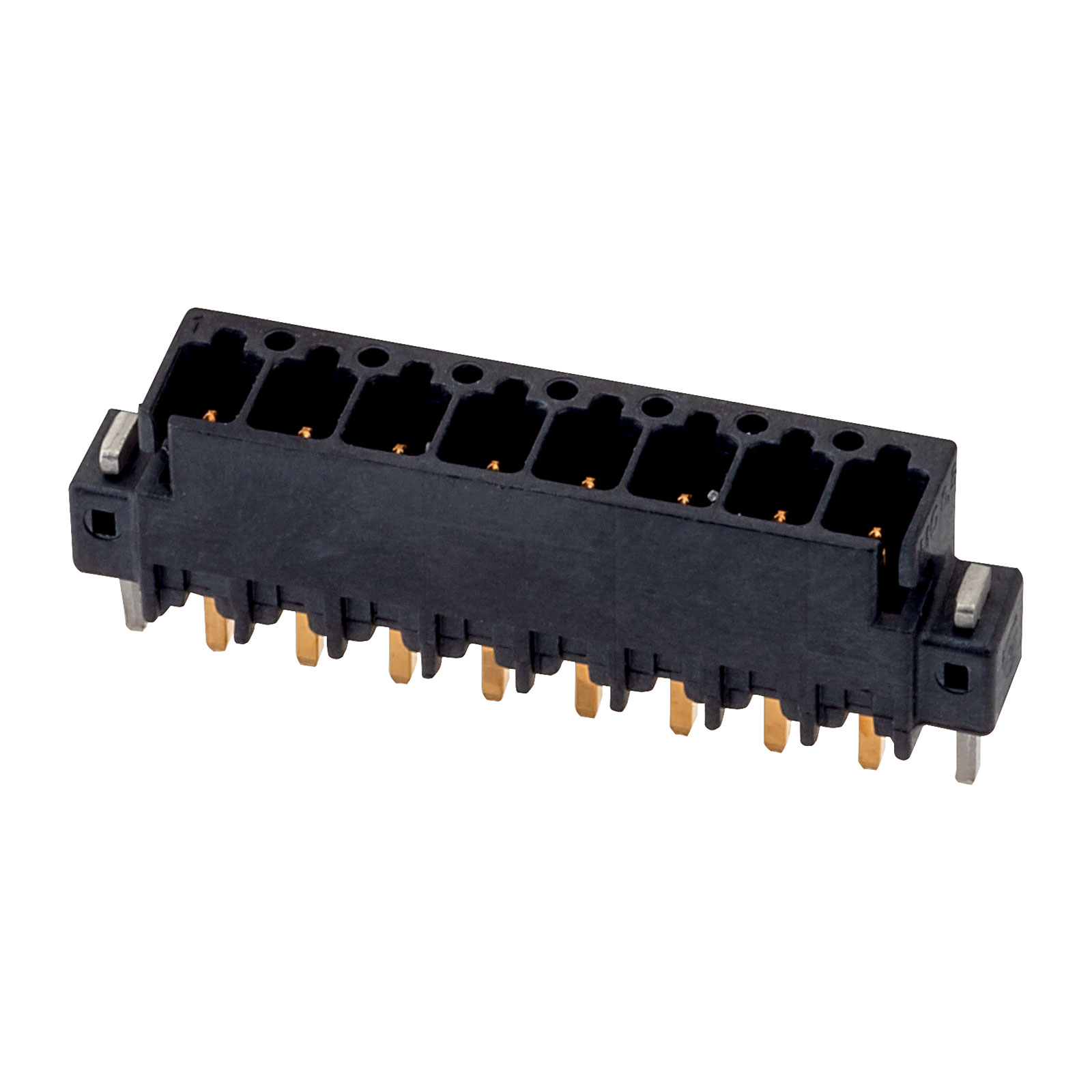

8-way 6A, 160V, 2.54mm pitch vertical PCB mounting feed-through headers from Phoenix Contact's MCV 0,5/ G-2,54P20THR series.
Supplied as a FULL REEL of 315 pieces on 44mm tape.
- No. of ways: 8
- Supplied in a as a FULL REEL of 315 pieces on 44mm tape
- Nominal current: 6A
- Rated voltage: 160V
- Pitch: 2.54mm
- Length: 4.85mm
- Width: 24.9mm
- Height: 9.1mm
- Housing colour: black
- Through-hole PCB mounting with linear single pinning
- Designed for integration into the SMT soldering process
- Additional solder anchors reduce the mechanical strain on the soldering pads
- Gold-plated contacts ensure transfer quality remains stable over the long term
- Vertical connection enables multi-row arrangement on the PCB
- Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting
- Phoenix Contact type MCV 0,5/ 8-G-2,54P20THR
- Phoenix Contact part no. 1821452
| Pitch |
2.54mm |
| No of Ways Per Row |
8 |
| No. of Rows |
1 |
| Current Rating |
6A |
| Colour |
Black |
| Wire Gauge (AWG) |
N/A |
| Wire Gauge (mm²) |
N/A |
| Angle PCB/contact |
N/A |
| Connection |
PCB |
| Connector model |
Other |
| Contact Type |
Pin |
| Diameter connection pin |
1.2mm |
| Housing colour |
Black |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
2mm |
| Material insulation body |
Other |
| Material of contact surface |
Other |
| Modular spacing connections |
2.54mm |
| Modular spacing contacts |
2.54mm |
| Number of pins |
8 |
| Number of plug-in contact rows |
1 |
| Number of Poles |
8 |
| Operating Temperature |
-40 - 100°C |
| Orientation |
Vertical |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
6A |
| Rated Surge Voltage |
2.5kV |
| Rated voltage |
160V |
| Suitable for PCB thickness |
N/Amm |
| Type of banding |
Other |
| Type of connection |
N/A |
| Type of electric connection |
Other |
| Type of fastening |
Other |
| Type of PCB fastening |
N/A |
