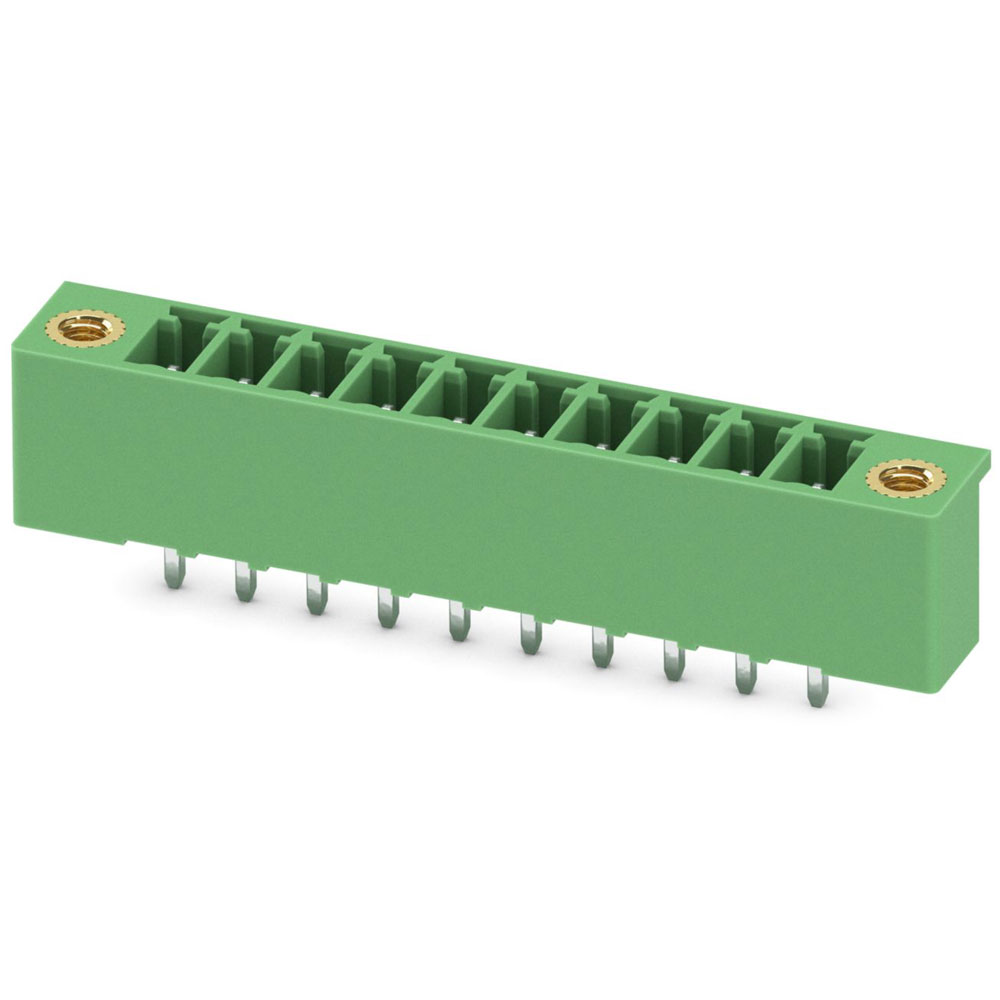

Phoenix Contact 1818070 pin housing PCB 10 pins 3.5 mm spacing

Phoenix Contact manufactures the 10-pin housing PCB, model number 1818070, with a contact spacing of 3.5 mm. This PCB socket strip is ideal for ensuring secure and reliable connections in various electronic applications. It is commonly used in industrial automation and control systems for effective signal and power transmission.

Body Style	Plug, horizontal mount
Pitch	3.5mm
No of Ways Per Row	10
No. of Rows	1
Current Rating	8A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle PCB/contact	N/A
Connection	Soldering
Connector contact surface	Tin
Connector model	Other
Contact Type	Pin
Diameter connection pin	1.2mm
Dim	(L x W x H) 7.25 x 45.3 x 12.6 mm
Height	12.6mm
Housing Colour	Green
Inflammability class of insulation material according to UL94	V0
Insulation Material	PBT
Length	7.25mm
Length pin	3.4mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	MCV 1,5/10-GF-3,5-LR
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
Nominal Voltage	250V
Number of plug-in contact rows	1
Number of Poles	10
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Suitable for PCB thickness	N/Amm
Total number of pins	10
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Engage (snap)
Type of PCB fastening	N/A
Width	45.3mm
