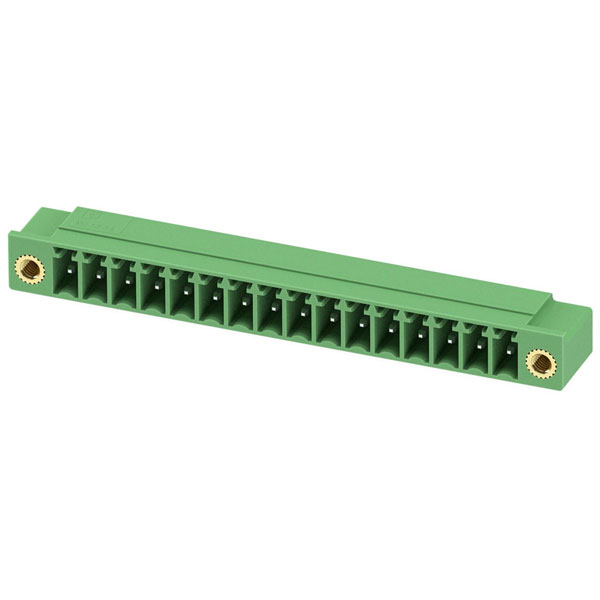

Phoenix Contact 1817754 pin housing PCB 16 pins 3.5 mm spacing

Phoenix Contact's pin housing PCB 1817754 features 16 pins with a contact spacing of 3.5 mm. This durable PCB socket strip is ideal for a variety of electronics and circuit board applications. It ensures secure and reliable connections for precise electronic tasks.

Body Style	Plug, horizontal mount
Pitch	3.5mm
No of Ways Per Row	16
No. of Rows	1
Current Rating	8A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle PCB/contact	N/A
Connection	Print
Connector contact surface	Tin
Connector model	Other
Contact Type	Pin
Diameter connection pin	1.2mm
Dim	(L x W x H) 9.2 x 66.3 x 10.65 mm
Height	10.65mm
Housing colour	Green
Inflammability class of insulation material according to UL94	V0
Insulation Material	PBT
Length	9.2mm
Length pin	3.4mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	MC 1,5/16-GF-3,5-LR
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
Nominal Voltage	250V
Number of plug-in contact rows	1
Number of Poles	16
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Suitable for PCB thickness	N/Amm
Total number of pins	16
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Engage (snap)
Type of PCB fastening	N/A
Width	66.3mm
