Phoenix Contact 1803620 MINI COMBICON socket housing 7-pin 3.81mm spacing

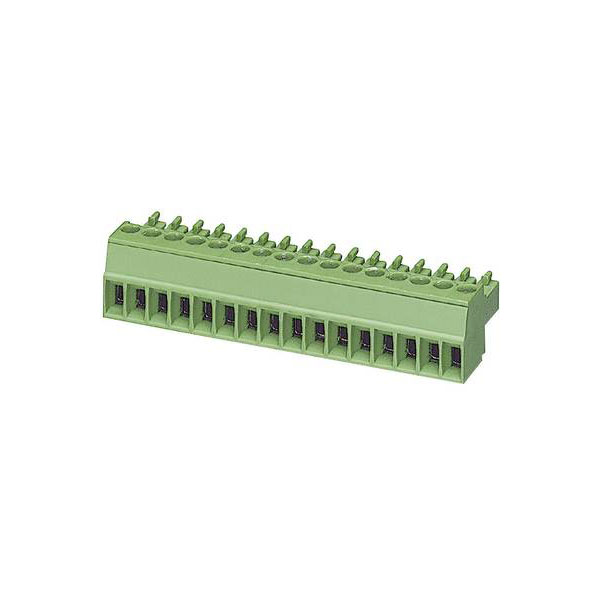

Image Representative of Range

Phoenix Contact 1803620 MINI COMBICON socket housing 7-pin 3.81mm spacing

Phoenix Contact
Order Code:

06-1989

Brand: Phoenix Contact MPN: 1803620 EAN-13: 2050000437632
Qty Unit Price (Ex VAT)
1+ £7.22
10+ £6.48
25+ £5.86
50+ £5.27
100+ £4.72
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
61 in stock, despatched in 4 working days

The Phoenix Contact socket housing cable features seven pins with a contact spacing of 3.81 mm and supports a nominal current of 8 A. It is a screw type connector commonly used for reliable electrical connections in various components and connectors. This component is ideal for applications requiring secure connections in industrial and electronics sectors.
No. of Rows 1
Current Rating 8A
Wire Gauge (AWG) 16
Wire Gauge (mm²) 1.15mm²
Colour Green
A 22.86mm
AWG (min.) 28
Case Material PA
Connector cross section 1.15mm²
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Tin plated
CS 3.81mm
Dim (L x W x H) 11.10 x 27.46 x 16.10 mm
Height 16.10mm
Industrial packaging Yes
Length 11.10mm
max. cross section 1.5mm²
Min. cross section 0.14mm²
Misc Attribute MC 1,5/ 7-ST-3,81
Nominal Voltage 160V
Pins per row 7
Series MC
Stripping length (max.) 7.00mm
Total number of pins 7
Type Socket housing cable
Width 27.46mm
