Phoenix Contact 1792944 10-Way PCB Terminal Block 5mm Pitch 12A Green

Inc VAT

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 91 in stock

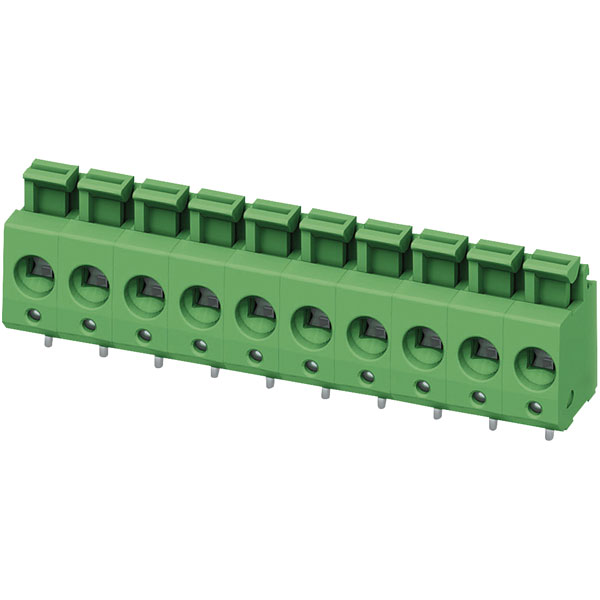

This 5mm PCB terminal block from Phoenix Contact has 10 ways.

Pitch	5mm
No. of Ways	10
Mounting Type	Through Hole
Wire Termination	Screwless
Angle PCB/conductor connection	N/A
Colour	Green
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 2.5mm²
Connectable conductor cross section multi-wired	2.5 - 2.5mm²
Connectable conductor cross section solid-core	0.14 - 2.5mm²
Connection type conductor	Spring clamp connection
Connection type PCB	Soldering connection
Degree of protection (IP), mounted	N/A
Diameter connection pin	N/Amm
Height	16.1mm
Housing Colour	Green
Inflammability class of insulation material according to UL94	V0
Length pin	2.5mm
Material connection surface	Tin
Material insulation body	Other
Maximum Wire Size AWG	14
Modular spacing connections	5mm
Number of electrical connections	10
Number of levels	1
Number of pins	10
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	16A
Rated Surge Voltage	4kV
Rated voltage	400V
Type	Spring-loaded terminal
Type of banding	Carton (for SMD)
Type of fastening	Solder
Type of PCB fastening	Connecting contact
