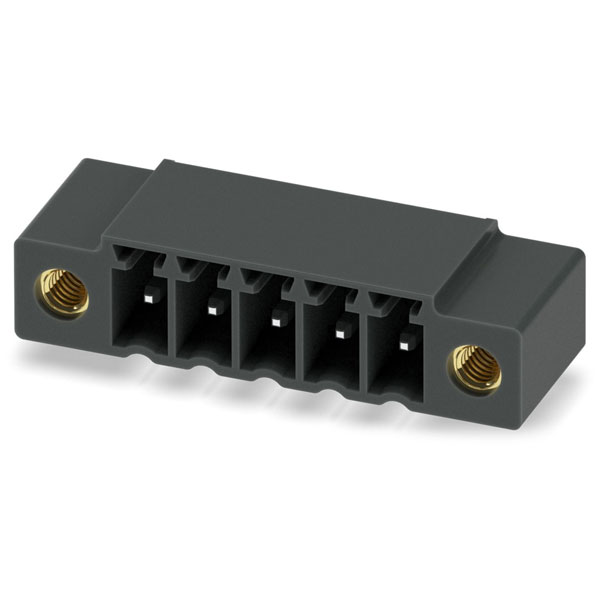

Phoenix Contact 1789669 pin housing PCB 5 pins 3.5 mm spacing Screw-mount

Phoenix Contact manufactures this PCB pin housing, model 1789669, featuring five pins with a contact spacing of 3.5 mm. This component is ideal for secure connections on printed circuit boards in electronic assemblies. Typical applications include use in automation systems and consumer electronics.

Body Style	Plug, horizontal mount
Pitch	3.5mm
No of Ways Per Row	5
No. of Rows	1
Current Rating	8A
Colour	Black
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle PCB/contact	N/A
Connection	THR
Connector contact surface	Tin
Connector model	Other
Contact Type	Pin
Diameter connection pin	1.4mm
Dim	(L x W x H) 9.2 x 27.8 x 8.3 mm
Height	8.3mm
Housing Colour	Black
Inflammability class of insulation material according to UL94	V0
Insulation Material	LCP
Length	9.2mm
Length pin	1.4mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	MC 1,5/ 5-GF-3,5 P14 THR
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
Nominal Voltage	250V
Number of plug-in contact rows	1
Number of Poles	5
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Suitable for PCB thickness	N/Amm
Total number of pins	5
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Other
Type of PCB fastening	N/A
Width	27.8mm
